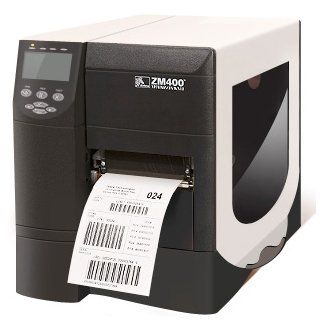

Zebra ZM400

Used Zebra ZM400 Refurbished

Zebra ZM400 industrial printer is upgradable with RFID for smart label encoding. Make warehouse or inventory management more efficient with Zebra ZM400 printer. Zebra ZM400 allows for high-speed, high-volume printing. The XML printing option allows for direct connection to ERP applications.

Get a Quote >>

Starting as low as: $695.00*

Availability: Call for availability

All MIDCOM Certified refurbished equipment includes a 90 day warranty. Supplies are limited, but updated regularly.

*Base model

**INCLUDES NEW PRINTHEAD & ETHERNET**

Our refurbishment process

The following parts are carefully inspected and/or tested on every thermal printer and where we believe a part is defective or worn, we replace that part as needed: ribbon feed spindle, ribbon take up spindle, platen, rollers, bearings, drive motor, belts, logic board, ribbon sensor, media sensor, control panel, display panel, power supplies, housing components are cleaned/or painted & replaced as necessary, and brand new print head added. Each unit undergoes stringent testing and quality control procedures before being shipped. Our printers ship with a 90 day limited return to MIDCOM service center warranty.

Product Information

Overview

Zebra’s Z Series industrial printer is upgradable with RFID for smart label encoding. Make warehouse or inventory management more efficient with Zebra Z Series printers. Zebra Z Series allows for high-speed, high-volume printing. The XML printing option allows for direct connection to ERP applications.

Specifications

16 MB DRAM, 8MB Flash

203dpi (8 dots/mm) printhead

RS-232C Serial Interface

High Speed, IEEE 1284, Bi-Directional Parallel Interface

USB 2.0

Transmissive and reflective media sensors

Multi-lingual backlit 240×128 pixel graphic display

Color-coded operator cues

RFID Ready

More Standard Features

Thermal transfer and direct thermal operating modes (can only use one mode at a time)
Die-cast aluminum base, frame, and printhead mechanism
Metal media cover with large clear window
16 MB DRAM, 8MB Flash
203dpi (8 dots/mm) printhead
RS-232C Serial Interface
High Speed, IEEE 1284, Bi-Directional Parallel Interface
USB 2.0
Transmissive and reflective media sensors
Multi-lingual backlit 240×128 pixel graphic display
Color-coded operator cues
RFID Ready
7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
32-bit processor
Auto-calibration
Auto detectable (90V – 265V) power supply
Element Energy Equalizer™ (E3®) (for print head energy control)
Real Time Clock
Unicode™ – Compliant
Quick change printhead and platen
Charcoal gray form design (for improved smudge resistance)
ZPL® or ZPLII® (Zebra Programming Language®)

Printer Specifications

Resolution: 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) 600 dpi (23.5 dots/mm) Memory

16 MB DRAM
8 MB Flash
64 MB Factory-Installed On-Board Optional Flash (optional)

Print width: 4.09″ (104 mm) Print length

Length with 203 dpi: 157″ (3,988 mm)
Length with 300 dpi: 73″ (1,854mm)
Length with 600 dpi: 39″ (991mm)

Print speed: 203 dpi 10″ (254 mm)/sec 300 dpi 8″ (203 mm)/sec 600dpi 4″ (102 mm)/sec Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width

4.5″ (114 mm) – tear & cutter
4.25″ (108mm) – peel & rewind

Minimum label and liner width: 1.0″ (25.4mm) Maximum label and liner length: 39″ (991mm) Maximum roll diameter: 8″ (203 mm) Core diameter: 3″ (76 mm) Media thickness: 0.0023″ (.058 mm) to 0.010″ (0.25 mm) Media types: black mark, continuous, die-cut, fanfold, notched, perforated, tag stock

Ribbon Characteristics

Outside diameter: 3.2″ (81.3 mm) Standard length: 1476′ (450 m) or 984′ (300 m) Ratio: 3:1 media roll to ribbon ratio Ribbon width: 2″ (51 mm) to 4.33″ (110 mm) Ribbon: setup Ribbon wound ink-side out or ribbon wound ink-side in (configurable one or the other, but not both) ID Core: 1.0″ (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C) Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 20-85% non-condensing R.H. Storage humidity: 5-85% non-condensing R.H. Electrical: Universal auto-detectable (PFC-compliant) power supply 90-265 VAC Agency approvals

IEC 60950-1 EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3

Physical Characteristics

Width: 10.9″ (278 mm) Height: 13.3″ (338 mm) Depth: 18.7″ (475 mm) Weight: 32.4 lbs (15 kg) Shipping weight: 49 lbs (22 kg)

Related Products

Options

300 dpi (12 dots/mm) printhead
600 dpi (23.5 dots/mm) printhead
64 MB Factory-Installed, On-Board Flash Memory (58 MB user available)
Cutter with catch tray
Value peel (front mount, passive peel option with no liner take-up)
Peel with liner take-up
Rewind, internally rewinds full label roll on three-inch core (comes with taller, non-standard printer base)
Ribbon supply spindle for ribbon ink coated inside
RFID Field Upgrade Kit – installed by an Authorized Service Provider or return to factory
ZebraDesigner
ZebraDesigner Pro
ZebraDesigner for XML
ZebraNet Bridge Enterprise
XML-enabled printing
Printhead conversion kits
ZebraCare Extended Warranty
European and Asian font sets
APL-I/APL-D firmware (contact Zebra Development Services for additional details)
ZebraNet Wireless Plus Print Server
ZebraNet b/g Print Server

Communication and Interface Capabilities

USB 2.0
RS-232C serial port
RS 232 to RS-422/485 serial port adaptor
RS232 DB9 to DB25 adaptor
High speed, IEEE 1284, bi-directional parallel interface
ZebraNet 10/100 Print Server
ZebraNet Wireless Plus Print Server

ZebraNet b/g Print Server

Programming Languages

Core programming languages: ZPL, ZPL II, EPL, XML

Bar Codes/Symbologies

Linear Codabar Code 11 Code 128 with subsets A/B/C and UCC case codes Code 39 Code 93 EAN-13 EAN-8 Industrial 2-of-5 Interleaved 2-of-5 Logmars MSI Planet Code Plessey Postnet RSS (reduced space symbology) Standard 2-of-5 UPC and EAN 2 or 5 digit extensions UPC-A UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MaxiCode QR Code PDF417 MicroPDF417 RSS / GS1 DataBar family (12 barcodes)

Fonts and Graphics
