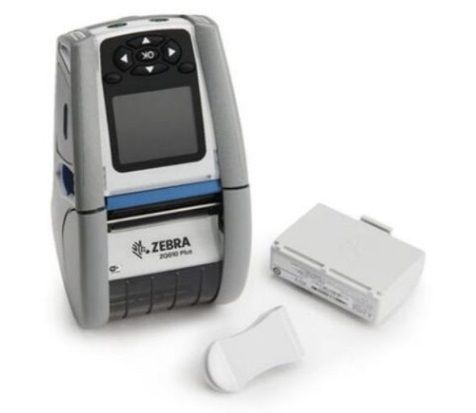

Zebra ZQ610-HC Plus

Zebra ZQ610-HC Plus

The Zebra ZQ610-HC Plus offers fast, dependable and secure wireless connections for your healthcare staff. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax/Bluetooth® 5.3 or 802.11ac/Bluetooth 4.2 dual radio options, depending on your network environment.
Get a Quote >>

Availability: Call for availability
Product Information

Overview

The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robust-ness and uptime.

Withstands Constant Disinfecting

The ZQ610-HC Plus is constructed using medical-grade, disinfectant-ready materials that can be safely cleaned between each use to help prevent the spread of germs in hospitals and clinics.

Specifications

Standard Features

• Disinfectant-ready plastics in a healthcare color scheme
• Apple® iOS, Android and Windows® Mobile connectivity
• Direct thermal printing of barcodes, text and graphics
• CPCL, EPL™ and ZPL® programming languages
• 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
• 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing
• Black mark and gap media sensing using fixed center position sensors
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• “Clamshell” design for easy media loading
• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®, SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink)
• Large, easy-to-read color display (288 x 240 pixels)
• Color display can be customized using WML (text and icons)
• 5-way navigation buttons, two software defined keys
• Printer color alerts on the display
• Tolerance of multiple drops from 5 ft./1.52 m to concrete
• IP54 dust and water resistance rating
• 400 MHz 32-bit ARM processor
• XML support
• Supports vertical and horizontal printing
• Printers can be used in any orientation
• QR barcode links to web-based help pages
• Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
• Label odometer
• NTP (Network Time Protocol) support via Wi-Fi or Ethernet
• Supports Zebra Network Connect manufacturing plant floor solution when used with the Ethernet cradle

Physical Characteristics

Dimensions
6.73 in. L x 3.6 in. W x 2.85 in. H
170.9 mm L x 91.4 mm W x 72.4 mm H

Weight With Battery
1.33 lbs/0.6 kg

Printer Specifications

Operating System
Link-OS®

Resolution
203 dpi/8 dots per mm

Memory
256 MB RAM; 512 MB Flash (standard)

Maximum Print Width
1.9 in./48 mm

Maximum Print Speed
Up to 4.5 in./115 mm per second

Media Sensors
Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

Print Length
Minimum: 0.5 in./12.7 mm
Maximum: 32 in./813 mm

Power
3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery

Media Characteristics

Label and Liner Length
0.5 in./12.7 mm to 32 in./813 mm or continuous

Media Width
1.0 in./25mm to 2.18 in./55.4 mm

Maximum Media Roll Size
2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

Thickness
2.3 mil to 5.5 mil tag stock or 6.5 mil label stock

Media Types
Die-cut labels and tags, linerless labels, receipt paper, black bar and gap

Operating Characteristics

Environment Operating Temp.:
32°F to 122°F/0°C to 50°C
Operating Humidity:
10% to 90% non-condensing
Storage/Transportation Temp.:
-13°F to 149°F/-25°C to 65°C1
Storage Humidity:
10% to 90% non-condensing

Agency Approvals
Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B
Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5
Safety: CE, TUV, CSA
ENERGY STAR® certified

Security
FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.

Firmware

CPCL, EPL and ZPL programming languages

ZBI 2.x™—powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

Barcode Symbologies

• Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
• Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on
• PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS)
family, Aztec, MSI/ Plessey, FIM Postnet, Data Matrix, TLC39

Fonts and Character Sets

Standard Fonts
25 bitmapped, 1 smooth, scalable (CG Triumvirate
Bold Condensed1)

Optional Fonts
Downloadable bitmapped/scalable fonts
International Character Sets (optional): Chinese (traditional/simplified); Japanese; Korean; Thai, Vietnamese

Communication and Interface Capabilities

ZebraNet® Wi-Fi 6 (802.11ax) dual radio with support for:
  • Simultaneous Bluetooth 5.3 with BT SIG Certification
  • MIMO antenna design
  • Operation on both the 2.4GHz and 5GHz frequency bands
  • WPA3, WPA2, WPA
  • 802.11k, 802.11v and 802.11r roaming standards
  • TKIP and AES encryption
  • 802.1x (with WPA or WPA2)
  • EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
  • 802.11d and 802.11i
  • Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r
ZebraNet Wi-Fi 5 (802.11ac) dual radio with support for:
  • Simultaneous Bluetooth 4.2
  • TKIP and AES encryption
  • WPA and WPA2
  • 802.1x (with WEP, WPA or WPA2)
  • EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
  • 802.11d and 802.11i
  • Wi-Fi Certification
  • Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic
  • Key Caching (OKC), EAP Fast Session resumption or 802.11r

Bluetooth 4.2 (Classic and BLE) radio

  • Security modes 1 – 4
  • Made for iPod/iPhone/iPad” certified
  • Key Bonding
  • 10/100 Ethernet support (via charging cradle)
Cabled Communications Specifications

  • USB 2.0 full-speed interface (12 Mbps)
  • Mini-B connector with optional strain relief innovations
  • Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps
Options and Accessories

Following is a list of key accessories. Please refer to the Mobile Printer
Accessory Guide for a detailed list of all the accessories available for the
ZQ600 Plus Series:
Charging Options—inside the printer
• IEC 60601-certified AC adapter for medical environments
• Single cradle: single bay Ethernet and charging cradle with
IEC60601 AC adapter
• Quad cradle: quad bay Ethernet and charging cradle and AC adapter, with internal switch and stacking port
Charging Options—outside the printer
• 1-bay, 3-bay and 6-bay battery chargers
Spare batteries
Carrying Options
• Shoulder strap: available in standard or healthcare version (healthcare
version offers the same tolerance to cleaning agents as the printer)
• Hand strap
• Soft case
Linerless printing (with silicone platen roller only)—ZQ620 Plus only
ZBI 2.x
Printer stand for tabletop mounting
Serial and USB cables with strain relief


*Specifications are subject to change without notice
