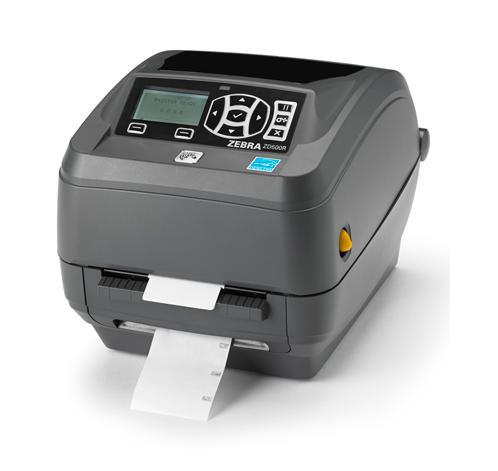

Zebra ZD500R

Zebra ZD500R

Small in size but full of features, the Zebra ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you’ll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, it is ideal for numerous applications such as retail tagging, and manufacturing, government and healthcare tracking.

Get a Quote >>

Availability: Call for availability

Zebra ZD500R

Talk to a Specialist (800) 643-2664 Get a Quote Form >>

Product Information

Overview

Specification

RFID : Supports tags compatible with UHF EPC Gen 2 V1.2/ ISO 18000-6C
Print methods: Thermal Transfer or Direct Thermal
Programming Language: ZPL
Construction: Dual-wall frame

Standard Features

RFID : Supports tags compatible with UHF EPC Gen 2 V1.2/ ISO 18000-6C
Print methods: Thermal Transfer or Direct Thermal
Programming Language: ZPL
Construction: Dual-wall frame

RFID Features

Prints and encodes tags with a minimum pitch of 0.6”/16 mm (without cutter option)
Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
RFID job monitoring tools track RFID performance
RFID ZPL® commands provide compatibility with existing Zebra RFID printers
Support for industry standard multi-vendor chip-based serialization (MCS)
Supports block permalocking of user memory compatible with ATA Spec 2000
Integrated ThingMagic® RFID Reader/Encoder

Printer Features

Tool-less printhead and platen replacement
OpenACCESS™ for easy media loading
Quick and easy ribbon loading
Simplified calibration of media
Quad connectivity: USB, Parallel, Serial, and Ethernet
Real-time clock
LCD User Interface
Zebra E3 Printhead Energy Contro
ENERGY STAR® qualified
Link-OS™enabled
Print Touch™ app
Unicode compliant for multi-language printing
16 resident expandable ZPL II® bitmap fonts
Two resident scalable ZPL fonts
Auto-switching 100-240V power supply
Head-up sensor
Standard tear-off mode feature
3” media core adaptor
Zebra printer drivers for Windows™

Printer Specifications

Resolution:

203 dpi (8 dots/mm)
300 dpi (12 dots/mm) optional

Memory:

128 MB Std SDRAM memory (4 MB available to user)
256 MB Std Flash memory (56 MB available to user)

Print length:

39″ (990 mm) maximum
Programmable print speeds of 2, 3, 4, 5, & 6 ips (51, 76, 102, 127, & 152 mm/s)

Media sensors:

Full width reflective and multiposition transmissive sensors

Media Characteristics

Maximum label and liner length: 39″/990 mm (maximum non-continuous)

Maximum label and liner width: 0.75″/19 mm to 4.25”/108 mm

Label Length:

Minimum using tear off mode: .25” (6.3 mm)
Minimum with label present sensor used – 0.50” (12.7 mm)
Minimum with cutter – 1.0” (25.4 mm)
Maximum media roll size: 5″/127 mm O.D.

Media thickness: 0.003″/0.08 mm to 0.012” (0.305 mm)

Media types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands

Ribbon Characteristics

Outside diameter: 1.36″/35 mm Standard length: 244′/74 mm Ratio: 1:1 media to roll to ribbon Width: 1.33″/33.8 mm to 4.3″/109.2 mm Core inner diameter: 0.5″/12.7 mm

Environmental

Storage Temperatures: -40° F/-40° C to 140° F/60° C

Physical Characteristics

Width: 7.6″/193 mm Height: 7.5″/191 mm Depth: 10.0″/254 mm Weight:4.9 lbs/2.2 kg

Barcodes/Symbologies

Barcode Ratios: 2:1 (non-rotated) and 3:1
Linear Bar Codes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)
2-Dimensional: PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Options and Accessories

300 dpi print resolution printing for fine detail and crisp images Wireless—802.11 a/b/g/n and Bluetooth 3.0 Dispenser—label peel and present with present sensor Cutter for various media types ZKDU and KDU Plus™ keyboard display units for stand-alone printing solutions

*Specifications are subject to change without notice
