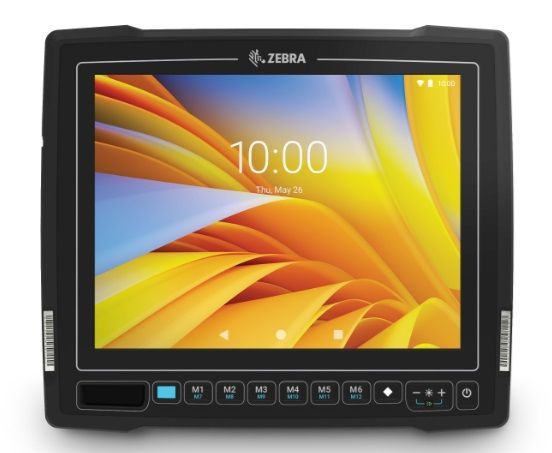

Zebra VC83 (10 inch)

Zebra VC83 (10-inch)

The Zebra VC8300 10-Inch is ready for your toughest environments, with dust-and-water tight IP66 sealing, sealed connectors, a clean flat front that won’t catch dust or water, plus extreme temperature, shock and vibration testing.

Get a Quote >>

Availability: Call for availability

View Zebra VC83 8-Inch model >>

Get $250 Trade-In Rebate (learn more)

Product Information

Overview

Secure your devices every day they are in service with Zebra Mobility DNA’s LifeGuardTM for AndroidTM. Included with every Zebra OneCare contract at no extra cost, LifeGuard provides the Android security updates needed to protect your devices, data and network, with options that put you in charge of how, when and where updates take place. And with built-in support through Android 14, the devices you buy today will support the features in the operating system versions of the future.

Specifications

Physical Characteristics

Dimensions

10.87 in. W x 9.37 in. H x 3.54 in. D

276 mm W x 238 mm H x 90 mm D

Weight

8.2 lbs./3.7 kg

Display

10.4 in. color XGA (1024 x 768); 400 NITs

Touch Panel

Standard version: capacitive multi touch, Corning Gorilla Glass with air gap

Freezer version: resistive touchscreen with passive stylus or finger operation, integrated touchscreen heater evaporates external condensation

Power

12 to 48VDC nominal

10 to 60VDC min/max

Isolated and integrated power supply

Power Consumption

OFF: <1W

Suspend: 4 - 7.5W

Run Mode: 10-13W: display brightness at 50%, keyboard backlight off, Wi-Fi radio in receiving mode, and UPS battery fully charged.

36-40W: display brightness at 100%, keyboard backlight at 100%, Wi-Fi radio receiving and transmitting, UPS battery is charging, and scanner connected.61-65W: display brightness at 100%, keyboard backlight at 100%, Wi-Fi radio receiving and transmitting, UPS battery is charging, scanner connected and touch screen heater is on

UPS

Heated Uninterruptable Power Supply (UPS); minimum 30-minute life over the full operating temperature range

Connectivity

1x Type C USB 3.0 combination host and client port; 1x USB 2.0 host port supports BC1.2; 1x standard powered USB 2.0 host port with 12V/1.5A; 2 x RS-232 COM ports with power on pin 9; 1 x 3.5 mm audio jack for push-to-talk speaker/mic. All ports have strain relief and cover.

Scanner Support

HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX and RS6000; Serial RS232 with power on pin 9

Notifications

Indicators: audible tone

Power Status: green/amber LED

Warning: red LED

Blue key status: Blue LED

Voice and Audio

High volume 87 dBA speaker

External optional speaker/microphone

Keyboard Options

Optional heated external QWERTY or AZERTY keyboard; optional keyboard mounting tray

Keys

Six (6) programmable keys, volume/brightness, blue key for 2nd level functions, on/off key, diamond key (pops up on-screen keyboard)

Mounting

RAM mount; quick release mount; U-mount; adapter for legacy vehicle computer mounts

Performance Characteristics

CPU

Qualcomm SnapdragonTM 660 octa-core 2.2 GHz

Memory

4 GB RAM/32 GB Flash pSLC

Operating System

Upgradeable to Android 14

Software

Ivanti Velocity (pre-loaded and pre-licensed)

User Environment

Operating Temp.

-22° F to 122° F/-30° C to 50° C

Storage Temp.

-40° F to 140° F/-40° C to 60° C

Humidity

5% to 95% non-condensing (standard version); 5% to 95% condensing (freezer version with internal heating)

Sealing

IP66

Impact

Ball drop; 5 Joules on touchscreen; IEC EN 60079-15:2003

Shock/Vibration

IEC 60721-3-5M3; MIL-STD 810G; Method 514.6;

MIL-STD 810G; Method 516.6

Thermal Shock

-22° F to 122° F/-30° C to 50° C

Integrated Sensors

Gyroscope; Motion (Accelerometer); Temperature

Salt Fog

48h of 5% solution at 35° C

Solar Radiation

EN/IEC 60068-2-5 solar radiation spectral energy distribution, 1120 W/m2 at display surface Environmental temperature: 40°C. Irradiation duration: 24 hours

Electrostatic Discharge (ESD)

+/-20kV air discharge; +/-10kV contact discharge;

+/-10kV indirect discharge

Wireless LAN

Radio

IEEE 802.11a/b/g/n/ac/k/r/d/h/i/v/w; IPv4, IPv6, 2x2 MU-MIMO

Data Rates

5GHz: 802.11a/n/ac—up to 866.7 Mbps

2.4GHz: 802.11b/g/n—up to 300 Mbps

Operating Channels

Channel 1-13 (2412-2472MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13

Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165

Channel Bandwidth: 20, 40, 80 MHz

Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption

WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES);WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES)— EAP-TTLS (PAP, MSCHAP, MSCHAPv2, GTC), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD; WPA Enterprise 192-bit (GCMP-256) — EAP-TLS; Enhanced Open (OWE)

FIPS 140-2 Level 1: Data in Motion and Data at Rest2

Multimedia

Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC)

Certifications

WFA (802.11n; 802.11ac; PMF, WMM-PS, WMM-AC, Voice Enterprise and Wi-Fi Direct)

Fast Roam

PMKID caching, Cisco CCKM, OKC, 802.11r

WLAN Antennas

Switchable internal or external antennas, various whip and magnetic mounted antennas available

Wireless PAN

Bluetooth

Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)

Freezer and Condensing

Selected industrial components with a wide temperature range specification

Inside and outside temperature sensors to identify condensing circumstances

Heated boards (additional resistors) to avoid inside condensation

Heated and vented UPS battery that charges/discharges over the full operating temperature range (-22° F to 122° F/-30° C to 50° C)

Heated connectors to avoid corrosion

Heater control chip to switch heaters on/off when required

Flat surface to avoid heavy icing on the front

Communication and Messaging

Workforce Connect PTT Express and PTT Pro optional licenses are available for purchase to easily add push-to-talk capabilities to your Zebra devices. Workforce Connect PTT Express provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro provides a scalable network agnostic push-to-talk solution, which also includes messaging, location services and two-way radio integration.

Platforming

Mobility DNA, Enterprise MDK, Standard Android SDK and SOTI for Android, Analytics Agent

*Specifications are subject to change without notice
