Zebra RS6100
Zebra RS6100

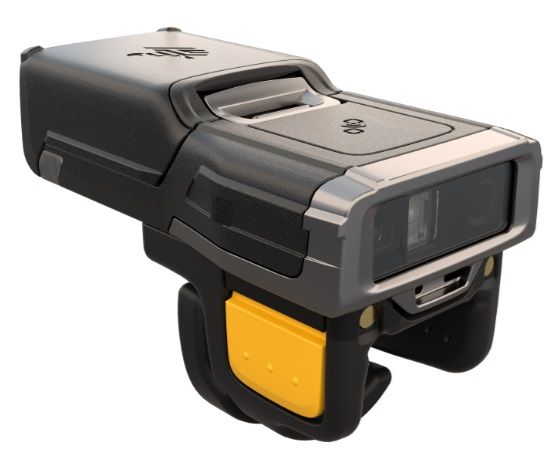

The Zebra RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition — scratched, dirty, poorly printed, under shrinkwrap and more.
Get a Quote >>
Product Information
*Specifications are subject to change without notice
Overview
Power the Zebra RS6100 via a corded adapter that connects to select Zebra mobile devices, including wearable and handheld computers.
Specifications
Physical Characteristics
Dimensions
2.62 in. L x 1.29 in. W x 0.83 in. D (2.8 cubic inches)
66.6 mm L x 32.7 mm W x 21 mm D
Weight
With 1x battery: 2.47 oz./70 g
With 1.5x battery: 2.68 oz./76 g
Optical Resolution
2688 x 1520 pixels
Roll
360°
Pitch
±60°
Skew
±60°
Aiming Element
515 nm Laser
Illumination Element
1 warm white LED
Field of View
Horizontal: 37°, Vertical: 21.4°
Ambient Light Immunity (from total darkness)
Max 107,639 lux (direct sunlight)
Supported 1D Symbologies
Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
Supported 2D Symbologies
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Supported OCR Symbologies
OCR-A, OCR-B
Power
480 mAh standard; 735 mAh extended; PowerPrecision+; Li-ion battery pack; corded adapters for WT6000, WT6300, TC21/26 and TC53/58
Network Connections WPAN (Bluetooth)
Scanner
SE55 1D/2D Advanced Range Scan Engine with IntelliFocus technology
Pairing
NFC; Tap to Pair
Performance Characteristics
User Environment
RoHS Directive 2011/65/EU; Amendment 2015/863
REACH SVHC 1907/2007
Operating Temperature
32° F to 122° F/0° C to 50° C with standard battery
-22° F to 122° F/-30° C to 50° C with extended battery
Storage Temperature
-40° F to 140° F/-40° C to 60° C including battery
-40° F to 158° F/-40° C to 70° C excluding battery
Humidity
5% - 95% non condensing
Drop Specification
Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Tumble Specification
1,000 1.64 ft./0.5 m tumbles
Sealing
IEC 60529: IP65
Vibration
Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis
Electrostatic Discharge (ESD)
±15kVdc air discharge; ±8kVdc contact discharge
User Interface
LED
4 RGB LEDs located at the back side of the device (programmable)
Beeper
Up to 85 dBA @ 10 cm from the back of the device beeper port
Restore Key
User accessible for emergency warm boot and Bluetooth reconnect (after disconnect timeout)
Scan Triggering
Manual ambidextrous trigger
Bluetooth
Class 1 and 2, Bluetooth v5.2 with Bluetooth Low Energy (BLE)
Supporting profiles: Serial Port Profile (SPP), Human Interface Device Profile (HID), Service Discovery
Application Profile (SDAP)
Decode Ranges (Typical)
Symbology/Resolution
Near/far
3 mil Code 39
2.7 in./6.9 cm to 16.2 in./41.1 cm
5 mil Code 39
2.5 in./6.4 cm to 26.6 in./67.6 cm
5 mil PDF417
2.8 in./7.1 cm to 19.6 in./49.8 cm
6.7 mil PDF417
2.6 in./6.6 cm to 25.6 in./65.0 cm
10 mil DataMatrix
2.2 in./5.6 cm to 27.1 in./68.8 cm
100% UPC (13 mil)
2.5 in./6.4 cm to 71 in./180 cm
15 mil Code 128
7.2 in./18.2 cm2 to 72 in./182.9 cm
20 mil Code 39
109 in./276.9 cm2
55 mil Code 39
293 in./744.2 cm2
100 mil Code 39
554 in./1407.2 cm2
100 mil DataMatrix
270 in./685.8 cm2
*Specifications are subject to change without notice
