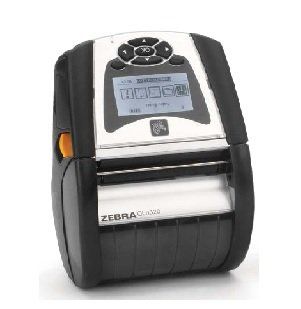

Zebra QLn320

Zebra’s popular QL™ family of direct thermal mobile label printers has built a highly satisfied following based upon its proven dropresistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ series extends these QL-platform benefits to the “nth” power—whether you choose the QLn320™ for 3-inch-wide printing, or the QLn220™ for print widths up to 2 inches.

Get a Quote >>

Availability: Call for availability

Product Information

Overview

Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

128 MB RAM

256 MB Flash

Print width: 2.9″ (72 mm)

Print length: 32″ (813 mm)

Print speed: up to 4 ips (100 mm/s)

More Standard Features

Direct thermal printing technology 203 dpi resolution (8 dots/mm) Print speed: up to 4 ips (100 mm/s) CPCL and ZPL programming languages Resident fixed and scalable fonts 400 MHz 32-bit ARM processor with 128 MB RAM 256 MB Flash Serial and USB ports 2.45 AH removable Li-Ion smart battery Easy to use peel and present mode Label present sensor for issuing labels one at a time Tear bar for easy receipt dispensing Management: Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche®[Future firmware update] Large, easy to read LCD control panel 240 x 128 pixels 5-way navigation buttons, two software defined keys Printer alerts on the display, help menus Tolerance of multiple drops from 5′ (1.52m) to concrete Label odometer Real Time Clock Link-OS™ capable

Printer Specifications

Resolution: 203 dpi (8 dots/mm) Memory

128 MB RAM
256 MB Flash

Print width: 2.9″ (72 mm) Print length: 32″ (813 mm) Print speed: up to 4 ips (100 mm/s)

Operational Features

Linered 1.375″ inner core Linered 0.75″ inner core Linerless 1.375″ inner core Linerless 0.75″ inner core BT 2.1 802.11 b/g 802.11 a/b/g/n Ethernet Media width sensor 4300 mAh (nominal) removable extended capacity Li-ion smart battery

Media Characteristics

Maximum label and liner width: 3.125″ (79 mm) Minimum label and liner width: 1.0″ (25 mm) Maximum label and liner length: 32″ (813 mm) Maximum roll diameter: 2.6″ (66 mm) Core diameter: 0.75″ (19 mm) or 1.375″ (34.9 mm) Media thickness: 2.3 mil TO 6.5 mil Media types: black mark, gap, roll-fed

Operating Characteristics

Operating temperature: -4° F (-20° C) to 122° F (50° C) Storage temperatures: -13° F (-25° C) to 158° F (65° C) Operating humidity: 10% to 90% non-condensing Storage humidity: 10% to 90% non-condensing Electrical DC charging input: 12 VDC ± 10% at 2A maximum Removable, rechargeable Li-ion battery 2.45AH 7.4V

Agency approvals

FCC Part 15, Subpart B
EN55022 Class-B
EN60950
EN55024
VCCI class B
EN55024
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
CE
UL
TUV
CSA

Physical Characteristics

Width :4.6″ (117 mm) Height: 3.3″ (84 mm) Depth: 6.8″ (173 mm) Weight: 1.6 lbs (.72 kg)

Related Products

Options

802.11 b/g
802.11 a/b/g/n
Bluetooth 2.1
10/100 Ethernet support (via docking cradle)
Linerless printing (with silicone platen roller only)
ZBI 2.x Future firmware update

Communication and Interface Capabilities USB and Serial RS-232 with auto-sensing serial port

802.11 b/g
802.11 a/b/g/n
Bluetooth 2.1
10/100 Ethernet support (via docking cradle)
USB 2.0 Full Speed Interface (12 Mbps)
Mini-B connector
Serial interface: 14-pin RS-232C

Programming Languages

Core programming languages: CPCL-native

Bar Codes/Symbologies

Linear Code 39 Code 93 UCC/EAN-128 Code 128 Codabar Interleaved 2-of-5 UPC-A UPC-E EAN-8 EAN-13 EAN-8 and EAN-13 with 2 or 5 digit extensions UPC-A and UPC-E with 2 or 5 digit extensions 2-dimensional PDF417 MicroPDF417 MaxiCode QR Code RSS / GS1 DataBar family (12 barcodes) Aztec Data Matrix TLC 39

MFG Part #(s): QN3-AU1A0M00-00, QN3-AU1AB00-00, QN3-AUCA0M00-00, QN3-AUGA0000-00, QN3-AUGB0E00-00, QN3-AUNA0EB0-00, QN3-AUNA0M00-00, QN3-AUNA0M00-FT, QN3-AUNA0MB0-00, QN3-AUNB0M00-00

*Specifications are subject to change without notice
