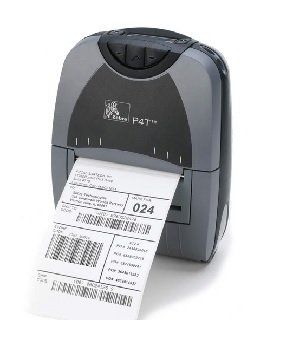

Zebra P4T

MFG Part #(s): P4D-0U110000-00, P4D-0UB10000-00, P4D-0UG00000-00, P4D-0UG0E000-00, P4D-0UG10000-00, P4D-0UJ0E000-00, P4D-0UJ10000-00

Availability: Call for availability

Product Information

Overview

World’s First Mobile RFID Printer — and Ideal for Long-Lasting Thermal Transfer Labels

Zebra’s P4T/RP4T is the first-ever mobile thermal transfer printer with RFID printing/encoding capability. The easy-to-carry P4T/RP4T printer enables you to print long-life barcode labels and documents up to 4” wide where and when you need them—resulting in enhanced data and asset-tracking accuracy and improved workforce efficiency. Uniquely flexible, the P4T/RP4T offers the advantages of thermal transfer image durability (barcodes/text/graphics), optional RFID, advanced wireless connectivity options and included direct thermal mode in a versatile variety of combinations.

Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

8 MB Flash

16 MB RAM

Print width 4.09″ (104 mm)

Direct thermal 3″ (76 mm)/sec

Thermal transfer 1.5″ (38 mm)/sec

More Standard Features

Prints bar code labels and documents up to 4″ wide with a peel mode Thermal transfer and direct thermal printing modes 32 bit processor USB 2.0 and serial connection Large LCD that is daylight readable and low level illumination for low-light conditions Open access design for easy media and ribbon loading Resident scalable fonts Supports vertical or horizontal printing Fanfold support Tolerance of multiple drops up to 5′ to concrete Smart battery and cartridge Shoulder strap.

Printer Specifications

Resolution: 203 dpi (8 dots/mm) Memory

8 MB Flash
16 MB RAM

Print width 4.09″ (104 mm) Print length

Maximum Print Length – at least 36″ (914 mm) – actual length depends upon total memory usage
Minimum Label Length – 1.25″ (31.75 mm)

Print speed

Direct thermal 3″ (76 mm)/sec
Thermal transfer 1.5″ (38 mm)/sec

Optional Features

Bluetooth 802.11b/g RFID Fanfold slot International character sets Application-specific accessories

Media Characteristics

Maximum label and liner width: 4.12″ (104.6 mm) Minimum label and liner width: 2.00″ (50.8 mm) Media width: 2.00″ (50.8 mm) x 4.09″ (103.9 mm) Maximum roll diameter: 2.60″ (66.0 mm) Core diameter: .75″ (19.0 mm)

Media Thickness:

Receipt paper minimum 0.0032″ (0.08 mm)
Labels maximum 0.0082″ (0.21 mm)
Tag maximum 0.0065″ ( 0.16mm )

Media types: fanfold, receipt, tag, tag stock, black bar, gap, continuous, continuous receipt

Ribbon Characteristics

Standard length: 1180.8″ (29992.3 mm) Ratio: 2 rolls of media to 1 roll of ribbon Ribbon width: 4.33″

Operating Characteristics

Operating temperature TT:32° F (0° C) to 113° F (45° C) Thermal transfer DT: Operating temperature: -4° F (-20° C) to 122° F (50° C) Direct thermal Storage temperatures: -22° F (-30° C) to 149° F (65° C) Operating humidity: 10% to 90% Storage humidity: 10% to 90% Rechargeable Li-Ion battery 4200 mAh 7.4V

Agency approvals

EMC: FCC Part 15 and EN55022 Class B limits;
Radio approval for BT, 802.11b/g & RFID: FCC, Industry Canada
Safety: IEC 60950, NRTL marking for US & Canada
EU: EMC, LVD, R&TTE Directives

Physical Characteristics

Width: 7″ (177.8 mm) Height: 8.6″ (218.4 mm) Depth: 3″ (76.2 mm) Weight: 2.9 lbs (1.32 kg) Shipping weight: 4.1 lbs (1.9 kg)

Related Products

Options

Wireless connectivity options
Bluetooth™ 2.0 short range connectivity
Wireless LAN (802.11b/g)
Class1 Gen 2 RFID encoder
AC Adapter
AC Single Charger
Quad battery charger
RAM® mounting hardware for vehicles or forklifts
DC Adapter
In-vehicle mobile charger
Nylon soft case
Spare battery
Cables

Communication and Interface Capabilities USB and Serial RS-232 with auto-sensing serial port

Communication interface: USB 2.0 and serial.
Wireless: Bluetooth, Short Range Radio Frequency connectivity.
Profiles supported: SPP.
WLAN (802.11b/g) support for the following security protocols: Airbeam Safe VPN, EAP-TLS, EAP-TTLS, LEAP, PEAP, EAP-FAST.
WPA with the protocols listed and WPA2-PSK (AES or TKIP).

Programming Languages

Core programming languages: CPCL-native, EPL, XML, ZPL, EPL2

Bar Codes/Symbologies

Linear Code 39 Code 93 UCC/EAN-128 Code 128 Codabar Interleaved 2-of-5 UPC-A UPC-E EAN-8 EAN-13 EAN-8 and EAN-13 with 2 or 5 digit extensions 2-dimensional PDF417 MaxiCode QR Code RSS / GS1 DataBar family (12 barcodes) Aztec Data Matrix

Fonts and Graphics

Supports pre-scaled and scalable fonts
Scalable text feature
Standard resident fonts can be rotated in 90° increments
Supports user defined fonts and graphics and logos
Text concatenation to assign different character styles
Allows text magnification 1-16 times the original size
Proportional and fixed-width fonts
International character set support
US/Canadian English/Latin 1 & 5 (Incl. Turkish), Japanese 16×16, Japanese 24×24, Chinese 16×16 (traditional), Chinese 16×16 (simplified) ,Chinese 24×24 (simplified), Korean Mincho, Korean Myeong. Others available upon request
