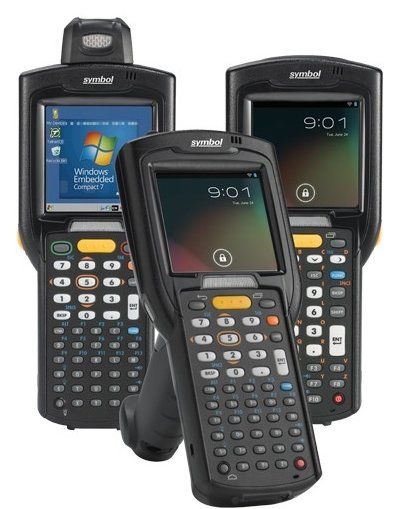

Zebra MC3200
Redefine productivity and reliability with the Zebra MC3200 mobile computer, the next generation in the class-leading Zebra MC3000 Series, now with more options to meet your needs. Choose the right operating system for your business – Android™ Jelly Bean or Microsoft™ Embedded Compact 7. Your choice of our most advanced 1D laser or 1D/2D imager scan engine allows your workers to easily capture barcodes in any condition.
Get a Quote >>
Availability: Call for availability
Product Information
Three lightweight models – brick, gun and turret – bring all day comfort to every task – from cycle counting to putaway, replenishment and voice-directed picking. And with over a million and a half Zebra MC3000 Series devices sold to date, you get a well-tested device you can trust.
Straight Shooter:
12.88 oz./365 g
Rotating Turret:
13.13 oz./372 g (with standard battery)
Gun:
18.0 oz./509 g (with extended battery)
CPU
Dual core 800 MHz OMAP4 Processor (Standard) or Dual core 1 GHz OMAP4 processor (Premium)
OPERATING SYSTEM
Choice of Windows Embedded Compact 7.0 (Standard or Premium) or Android 4.1 (Premium)
DROP SPECIFICATIONS
Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G
TUMBLE SPECIFICATIONS
500 1.64 ft./0.5 m tumbles (1,000 drops) at room temperature per IEC 68-2-32 tumble specifications
*Specifications are subject to change without notice
DOWNLOAD SPEC SHEET (358KB)
Overview
Three lightweight models – brick, gun and turret – bring all day comfort to every task – from cycle counting to putaway, replenishment and voice-directed picking. And with over a million and a half Zebra MC3000 Series devices sold to date, you get a well-tested device you can trust.
Specifications
DIMENSIONS
Straight Shooter:
7.49 in. L x 3.22 in. W x 1.78 in. D
190.4 mm L x 81.9 mm W x 45.2 mm D
At grip: 2.40 in. W x 1.35 in. D
60.9 mm W x 34.2 mm D
Rotating Turret:
8.37 in. L x 3.22 in. W x 1.57 in. D
212.6 mm L x 81.9 mm W x 40.0 mm D
At grip: 2.40 in. W x 1.35 in. D
60.9 mm W x 34.2 mm D
Gun:
7.59 in. L x 3.18 in. W x 6.5 in. D
192.7 mm L x 80.8 mm W x 166 mm D
7.49 in. L x 3.22 in. W x 1.78 in. D
190.4 mm L x 81.9 mm W x 45.2 mm D
At grip: 2.40 in. W x 1.35 in. D
60.9 mm W x 34.2 mm D
Rotating Turret:
8.37 in. L x 3.22 in. W x 1.57 in. D
212.6 mm L x 81.9 mm W x 40.0 mm D
At grip: 2.40 in. W x 1.35 in. D
60.9 mm W x 34.2 mm D
Gun:
7.59 in. L x 3.18 in. W x 6.5 in. D
192.7 mm L x 80.8 mm W x 166 mm D
WEIGHT
12.88 oz./365 g
Rotating Turret:
13.13 oz./372 g (with standard battery)
Gun:
18.0 oz./509 g (with extended battery)
CPU
Dual core 800 MHz OMAP4 Processor (Standard) or Dual core 1 GHz OMAP4 processor (Premium)
OPERATING SYSTEM
Choice of Windows Embedded Compact 7.0 (Standard or Premium) or Android 4.1 (Premium)
DROP SPECIFICATIONS
Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G
TUMBLE SPECIFICATIONS
500 1.64 ft./0.5 m tumbles (1,000 drops) at room temperature per IEC 68-2-32 tumble specifications
*Specifications are subject to change without notice
