TSC MH240

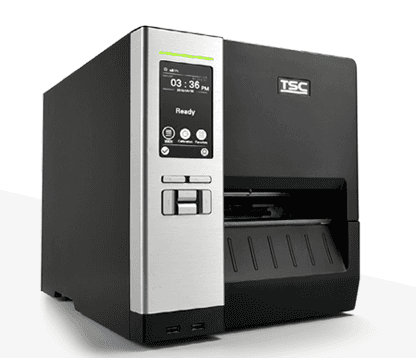

TSC MH240 Industrial Thermal Transfer Bar Code Printer

The MH240 industrial thermal printer is ruggedly built for high volume, high quality, label printing. Featuring our fastest print speeds ever, the TSC MH240 boosts productivity with faster processing power, communications and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.
Get a Quote >>
Specifications: 203 DPI, 14 ISP, 4.09" Label

Availability: Call for availability
manufacturer warranty
try and buy program
WATCH THE PRINTER IN ACTION!

The MH240 industrial thermal printer is ruggedly built for high volume, high quality, label printing. Featuring our fastest print speeds ever, the TSC MH240 boosts productivity with faster processing power, communications and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.
Product Information

Specifications

Resolution: 8 dots/mm (203 dpi)
Printing method: Thermal Transfer & Direct Thermal
Max. print speed: 356 mm (14″)/sec
Max print width: 104 mm (4.09″)
Max. print length: 25,400 mm (1,000″)

Enclosure

Die-cast print mechanism and base with bi-fold metal with large clear media view window

Physical dimension

276 mm (W) x 326 mm (H) x 502 mm (D)
10.87“ (W) x 12.83“ (H) x 19.76“ (D)

Weight

15.35 kg (33.84 lbs)

Label roll capacity

203.2 mm (8“) OD

Ribbon

600 meter long, max. OD 90 mm,1“ core (ink coated outside/inside)
Ribbon width
25.4 ~ 114.3 mm (1″ ~ 4.5″)

Processor

32-bit RISC CPU

Memory

• 512 MB Flash memory
• 256 MB SDRAM
• microSD Flash memory card reader for Flash memory expansion, up to 32 GB

Interface
• RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host * 2 (front side), for scanner or PC keyboard
• GPIO + Centronics (dealer option)
• Internal Bluetooth 4.0 (dealer option)
• Slot-in 802.11 a/b/g/n wireless (user option)

Power

Internal universal switching power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W

LCD

16 bits Color, 480 x 272 pixel, with back light, Resistive Touch Screen
Operation switch, button
1 power switch, 6 operation buttons (2 function keys and navigation buttons) & 1 LED with 3 colors (red, green, amber)

Sensors

• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Head open sensor
• Ribbon end sensor
• Ribbon encoder sensor
• Media near end sensor
Real time clock
Standard

Internal fonts

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

Bar code

• 1D bar code
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A,
UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN,
TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
• 2D bar code
TLC39, CODABLOCK F mode, Maxicode, QR code, Aztec, PDF-417, Micro PDF 417, GS1 DataMatrix, GS1 DataBar
(RSS barcode)
Font and barcode rotation
0, 90, 180, 270 degree

Printer language

TSPL-EZ (Compatible to EPL, ZPL, ZPL II)
Media type
Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media width

20 ~ 114 mm (0.79“ ~ 4.5“)

Media thickness
0.06 ~ 0.28 mm (2.36 ~ 28 mil)

Media core diameter

38.1 ~ 76.2 mm (1.5” ~ 3″)

Label length

5 ~ 25,400 mm (0.2“ ~ 1,000“)

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR®

Environmental concern

Comply with RoHS, WEEE

Accessories

• Quick start guide
• USB cable
• Power cord
Limited warranty
• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first
Factory options
• Internal rewinding kit (full roll)
Factory options
• GPIO + Parallel interface
• Internal Bluetooth module
Dealer options
• Regular cutter (full cut guillotine cutter)
• 802.11 a/b/g/n wireless module kit (slot-in)
User options
• KP-200 Plus series keyboard
• KU-007 Plus programmable smart keyboard

*Specifications are subject to change without notice
