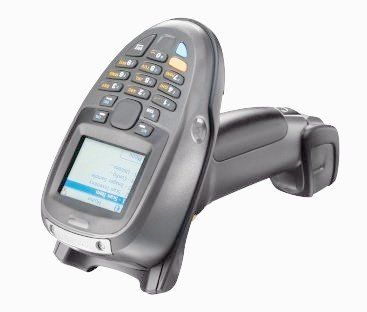

Motorola MT2090

Get a Quote >>

Availability: Call for availability

We'll buy your old barcode scanners! Learn more >>

Product Information

Overview

THE INTELLIGENCE OF A MOBILE COMPUTER AND THE SIMPLICITY OF A SCANNER

The Motorola MT2090 represents another industry first from Motorola — the marriage of the simplicity of a scanner with the brainpower of a rugged mobile computer and an ultra-ergonomic gun-style form factor. The result is a rugged handheld mobile terminal, a highly flexible device capable of streamlining many scan-intensive business processes in a wide variety of industries — from the front to back door in manufacturing plants, retail establishments, warehouses, hospitals and more. The easy-to-use affordable rugged mobile terminal offers a unique hybrid design, able to function as both a scanner and a rugged mobile computer throughout the business day. The Motorola MT2090 can be utilized right out of the box as a scanner — either tethered to a point of sale (POS), laptop or other computing system — or as a standalone wireless rugged mobile computer capable of enabling inventory and other scan-intensive applications anywhere in the enterprise.

FLEXIBLE DEPLOYMENT MODES — WIRELESS, CORDLESS, CORDED AND BATCH

The Motorola MT2090 offers integrated 802.11a/b/g for real-time direct application connectivity anywhere in your environment, ideal for put-away and picking in the retail backroom and warehouse aisles to material tracking, quality control and error-proofing on the manufacturing floor. Offers integrated Bluetooth® for a convenient cordless connection to a host device up to 300 feet (91.44 m) away — such as a Point-of-Sale (POS) or workstation. The Motorola MT2090 can operate in real-time or batch mode, increasing application flexibility. And regardless of whether the device is connected to your wireless LAN or to a host device, support for the latest wireless security protocols keeps your data safe — and helps ensure compliance with PCI and other government regulations.

Specifications

CPU – INtelXScale PXA270

Operating System – Microsoft® Windows CE 5.0

Memory – 64MB/64MB

Maximum rugged design

Options – 4 configurations

1D and 2D imaging

Physical Characteristics

Dimensions 7.8 in H x 3.1 in. W x 5.0 in. D 19.8 cm H x 7.8 cm W x 12.7 cm D

Weight 13.5 oz/378 gm

Display 320 X 240 QVGA color graphic display

Battery 2400 mAh Li-Ion @3.7Vdc

Communication Interface USB 2.0 Host and RS-232

Keypad 21-key single stroke numeric and shifted alpha, 4-way navigation button with 2 soft keys for application control Color Dark Gray

Performance Characteristics

CPU ntelXScale PXA270 @312MHz

Operating System Microsoft® Windows CE 5.0

Memory 64MB/64MB

Application Development Environment Microsoft Windows client CE EMDK; Motorola EMDK; MCL Designer V 3.0 (MCL Client pre-loaded on both the MT2070 and the MT2090; pre-licensed on the MT2070 only)

User Environment

Operating Temperature -4° to 122° F/-20° TO 50° C

Storage Temperature -40° to 160° F/-40° TO 70° C

Humidity 5% to 95% non-condensing

Drop Specification 6 ft./1.8 m drop to concrete over the operating temperature range

Tumble Specification 250 3.2 ft./1 m tumbles (500 drops)

Environmental Sealing IP54

ESD ±15kVDC air discharge, ±8kVDC direct/indirect discharge

Ambient Lighting Tolerance Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

Data Capture Options

Options 4 configurations: 1D Laser, 1D/2D Imager, 1D/2D HD Imager, DPM Imager

Symbology Decoding Capability

1D UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN- 13/JAN-8/JAN-13 plus supplements, ISBN (Bookland), Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, MSI Plessey, I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5), GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse), Base 32 (Italian Pharmacode)

2D TLC-39, Aztec (Standard, Inverse), Maxicode, DataMatrix/ECC 200 (Standard, Inverse), QR code (Standard, Inverse, Micro)

PDF417 PDF417 (Standard, Macro), Composite Codes (CC-A,CC-B,CC-C)

Postal U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, upu fics 4 State Postal, USPS 4CB

Security Certification

Certified compliant with FIPS 140-2 (available on MT2000 Series Bluetooth-enabled mobile terminals)

Wireless LAN Data Communication

Radio Tri-mode IEEE® 802.11a/b/g

Output Power 100mW US and international

Antenna Internal

Data Rates Supported 802.11b – 11MBPS; 802.11a – 54MBPS; 802.11g – 54MBPS

Frequency Range Country dependant: typically 2.4 to 2.5 GHz for 802.11b/g and 5.15 to 5.825GHz for 802.11a

Cordless Data Communications

Bluetooth 2.4Ghz class I radio – 300 feet (91.44 m) open air

Peripherals and Accessories

Cradles Single slot charge only cradle, Single slot multi-interface with Bluetooth cradle, Single slot charge only fork lift cradle, 4-slot charge only cradle, 4-slot Ethernet cradle

Chargers Four slot battery charger

Other Accessories Belt holster, desk cup, Intellistand

Printers Supports Motorola approved 3rd party printers

Regulatory

Electrical Safety Certified to UL60950-1, CSA C22.2 No. 60950-1, EN60950-1

EMI/RFI North American: FCC Part 2 (SAR), FCC Part 15 Subpart B – Class B, RSS210, EU: EN 301-489-1, 489-17

Laser Safety IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1

Warranty

The MC2000 Series is warranted against defects in workmanship and materials for a period of 36 months from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions.
