Intermec EasyCoder PX6i
certified refurbished
intermec logo
intermec easycoder px6i

Intermec EasyCoder PX6i Refurbished

Talk To A Specialist (800) 643-2664
The Intermec EasyCoder PX6i is built to meet the needs of round-the-clock, mission-critical applications,deliver advanced connectivity and network protocols, ensuring peace-of-mind today and a reliable, scalable solution for the long haul.
ORDER TODAY
Availability: Call for pricing and availability

All MIDCOM Certified refurbished equipment includes a 90 day warranty. Supplies are limited, but updated regularly.

**INCLUDES NEW PRINTHEAD AND ETHERNET**
*Base model.
certified refurbished
Our refurbishment process

The following parts are carefully inspected and/or tested on every thermal printer and where we believe a part is defective or worn, we replace that part as needed: ribbon feed spindle, ribbon take up spindle, platen, rollers, bearings, drive motor, belts, logic board, ribbon sensor, media sensor, control panel, display panel, power supplies, housing components are cleaned/or painted & replaced as necessary, and brand new print head added. Each unit undergoes stringent testing and quality control procedures before being shipped. Our printers ship with a 90 day limited return to MIDCOM service center warranty.
overnight shipping
Product Information

Overview

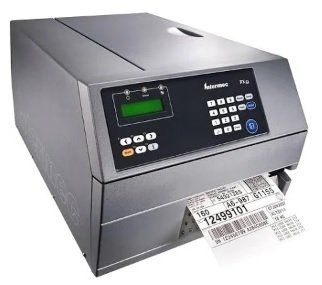

The rugged, all-metal Intermec EasyCoder PX6i printer delivers outstanding performance – up to 12 inches per second from first label to last - and incorporate features that reduce downtime and minimize maintenance costs. Available with 203 or 300-dpi resolution, for precision labeling without any loss of speed. This is ideal for compliance labeling applications with variable data requiring immediate results.

Physical Description
Direct thermal and thermal transfer label, ticket
and tag printer. Also available with RFID.

Physical Characteristics

LxHxW:
  PX6i: 482 x 238 x335 mm (19.0 x 9.4 x 13.2 in)
Weight:
  PX6i: 14.80 kg (32.6 lbs)

Print Specifications

Max. Print Width:
  PX6i: 167.4 mm (6.59 in)
Max. Length:
4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi
1016 mm (40 in) at 406 dpi

RFID Standards & Frequencies
Supports ISO 18000-6B and 18000-6C / EPC
Generation 2
865-928 MHz radio configured to comply with local
UHF RFID regulations including FCC and ETSI. Contact
local representative for availability in particular region.

Print Speed
PX6i: 100 - 225 mm/s (4 - 9 ips) for 203/300dpi
Media
Type: Labels & Tags
Max/Min Width:
PX6i: 170/ 76 mm (6.69/ 3 in)
Thickness: 2.4 to 10.0 mil
Configuration: Roll-fed or fanfold
Sensing: Gap, notch, black mark, continuous
Label Roll Max Diameter: 213 mm (8.38 in)
Label Roll Core: 38-76mm (1.5-3 in)
Type: Ribbons
Roll Max Diameter: 80 mm (3.15in), approx. 450m
Core ID: 25.4 mm (1”)
Type: Wax, mid-range, resin

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
Supported Serial Protocols:
• Fingerprint/Direct Protocol: XON/
  XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0
Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4
analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485
and 20mA Current Loop, Applicator Interface
Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, Cisco® Compatible
(CCX) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-
TTLS, LEAP, PEAP, FAST), 802.11i
• Multiple industrial antenna options
for maximized coverage
Supported Protocols: TCP/IP-suite (TCP, UDP,
ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP,
HTTP, SNMPv3, SMTP.SNMP-MIB II supported
(over UDP/IP), private enterprise MIB included.
Supports IPv4 and IPv6

Software

Printer Command Languages:
• IPL
• Fingerprint/Direct Protocol
• ZSim (ZPL)
• DSim (DPL)
• XML enabled for SAP® AII and Oracle® WMS
Applications / Drivers:
• InterDriver™ Windows printer driver
• Intermec label design and print package
• PrintSet for printer configuration
Development Software:
• Intermec Fingerprint Application Builder™ (IFAB)
(RFID libraries included)
Device Management Support:
• SmartSystems™
• Wavelink Avalanche™

Bar Code Symbologies
All major 1D and 2D symbologies are supported.

Standards Supported
UPC/EAN Shipping Container; UCC/EAN 128 Serial
Shipping Container; MH10.8 Shipping Label; AIAG
(shipping parts label); OGMARS; POSTNET; HIBCC; ISBT
128; GM1724; UPS shipping label; Global Transport label

Fonts
Scalable fonts including CP1252
Font cache for maximum performance
Non-Latin fonts and legacy fonts available

Graphics
Supports PCX file format. (Fingerprint Only)
Other graphic formats supported
with Label Generation Tools

Memory
Standard: 16MB Flash memory, 32MB
SDRAM, 1 Compact Flash slot
Available: 1GB CompactFlash memory, multi-GB USB
memory device (FAT16/FAT32 USB drivers supported)

Keypad Control Panel
Interactive numeric keypad control panel

Power Supply
AC Voltage: 90 to 265 VAC, 45 to 65Hz
PFC Regulation: IEC 61000-3-2
Power Consumption: Standby 20W;
Continuous average 125W; Peak 400W

Operating Environment
Ambient Operating Temperature:
+5°C to +40°C (+41°F to +104°F)
Storage Temperature: -20°C to +70°C (-4°F to +152°F)
Humidity: 10 to 90% non-condensing

Regulatory Approvals
CE (EN55022 Class A), FCC Class A, UL/cUL, C-Tick

Options
RFID, integral self-strip unit with liner takeup,
Label Taken Sensor (LTS), Compact Flash (CF)
memory, various international double byte fonts,
alphanumeric keyboard*, parallel interface board,
additional serial interface board*, industrial interface
board*, applicator interface board*, real time
clock, media supply hub, cutter, label low sensor

*Specifications are subject to change without notice
