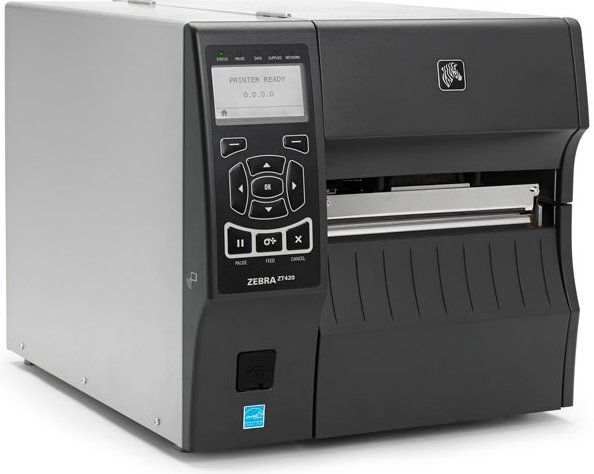

Zebra ZT420 Refurbished

Zebra ZT420 Refurbished

Resolution: 203 dpi (8 dots/mm)
Print Methods: Thermal transfer and direct thermal printing
Maximum Print Width: 6.6″/168 mm
Maximum Print Speed: 12 ips/305 mm per second

Get a Quote >>

Availability: Call for pricing and availability

**NEW PRINTHEAD & ETHERNET**
certified refurbished
Our refurbishment process

The following parts are carefully inspected and/or tested on every thermal printer and where we believe a part is defective or worn, we replace that part as needed: ribbon feed spindle, ribbon take up spindle, platen, rollers, bearings, drive motor, belts, logic board, ribbon sensor, media sensor, control panel, display panel, power supplies, housing components are cleaned/or painted & replaced as necessary, and brand new print head added. Each unit undergoes stringent testing and quality control procedures before being shipped. Our printers ship with a 90 day limited return to MIDCOM service center warranty.
Product Information

Overview

The ZT400 Series printers are rugged and loaded with a standard set of advanced features allowing for use in the widest array of Manufacturing, Transportation and Logistics, Health care and Retail applications. Building on the Z Series’ reliability with advancements in print speed, connectivity options, management and support tools, the ZT400 can be integrated into a wide range of environments.

Specifications

Resolution: 203 dpi (8 dots/mm)
Print Methods: Thermal transfer and direct thermal printing
Maximum Print Width: 6.6″/168 mm
Maximum Print Speed: 12 ips/305 mm per second
Maximum media roll size: 8.0″/203 mm O.D. on a 3″/76 mm I.D. core
Media thickness: 0.0023″/0.058 mm to 0.010″/0.25 mm
Media types: Continuous, die-cut, notch, black-mark
ENERGY STAR® qualified

More Standard Features

  • Print Methods – Thermal transfer and direct thermal printing
  • Resolution: 203 dpi/8 dots per mm
  • Construction: Metal frame and Bi-fold metal media cover with enlarged clear viewing window
  • Side-loading supplies path for simplified media and ribbon loading
  • Element Energy Equalizer™ (E3™) for superior print quality
  • Communication – USB 2.0, High-Speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host
  • Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation
  • Link-OS
  • Bi-colored status LEDs for quick printer status
  • ENERGY STAR® qualified

Printer Specifications

Resolution:
  • 203 dpi/8 dots per mm
  • 300 dpi/12 dots per mm (optional)
Memory:
  • 256 MB RAM memory (4 MB User Available)
  • 512 MB Flash memory (64 MB User Available)
Maximum Print Width: 6.6″/168 mm Maximum Print Speed: 12 ips/305 mm per second Media Sensors:
  • Dual media sensors – transmissive and reflective

Media Characteristics

Media web width (label and liner):
  • 2.00″/51 mm to 7.0″/178 mm Tear/Cutter
  • 2.00″/51 mm to 6.75”/171 mm Peel/RewindMaximum Non-continuous Label Length: 39″/991 mm
Maximum Non-continuous Label Length: 39″/991 mm Print Length
  • 203 dpi: 102″/2590 mm
  • 300 dpi: 45″/1143 mm
Maximum media roll size: 8.0″/203 mm O.D. on a 3″/76 mm I.D. core Media thickness: 0.0023″/0.058 mm to 0.010″/0.25 mm Media types: Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Outside diameter: 450 m: 3.2″/81.3 mm O.D. on a 1.0″/25.4 mm I.D. core Standard length: 1476′/450 m Width: 2.00″/51 mm to 4.33″/110 mm Ribbon setup: Ribbon Wound ink-side out: Ribbon wound ink-side in can be used with the optional ribbon spindle.

Environmental

Operating Environment
  • Thermal transfer: 40º to 104ºF/5º to 40ºC
  • Thermal direct: 32º to 104ºF/0º to 40ºC
Storage/Transportation Environment:
  • -40º to 140ºF/-40º to 60ºC

Physical Characteristics

Width: 13.25″/336.55 mm Height: 12.75″/324 mm Depth: 19.50″/495 mm Weight: 40 lb./18.14 kg

Bar Codes/Symbologies

  • Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
  • 2-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Options and Accessories

Communication
  • Parallel (Bi-directional interface)
  • Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features
Media Handling
  • Rewind: internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (Factory installed only)
  • Peel – A front mount, passive peel option
  • Peel – Liner take-up option – additional full roll liner take-up spindle accommodates standard printer base
  • Cutter: A front mount guillotine cutter and catch tray, 1″ ID Core Media Supply Hanger
  • Ink-side in ribbon supply spindle
RFID
  • Supports tags compatible with UHF EPC Gen 2 V1.2/ ISO 18000-6C
  • Prints and encodes tags with a minimum pitch of 0.6″/16 mm
  • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines Keyboard Display Unit
  • Supports KDU Plus™ and ZKDU – Enter variable data and retrieve stored forms for standalone applications
*Specifications are subject to change without notice
