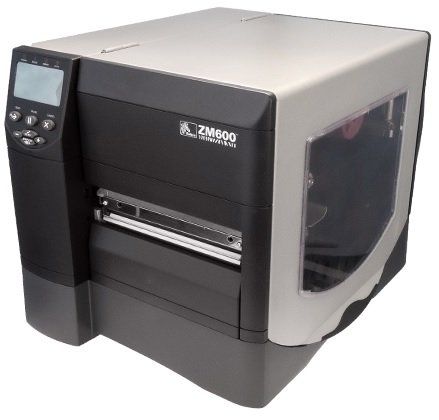

Zebra ZM600 Refurbished
The Zebra ZM600 printers bring added flexibility to the popular Z Series platform, which has always stood out from the competition in terms of both performance and price. With 10-inches-per-second print speed, industry leading throughput, rugged reliability, and a wide selection of options, these full-sized metal printers enhance productivity in tough environments and demanding applications.
ORDER TODAY
Availability: Call for pricing and availability
All MIDCOM Certified refurbished equipment includes a 90 day warranty. Supplies are limited, but updated regularly.
**INCLUDES NEW PRINTHEAD & ETHERNET**
*Base model.
Our refurbishment process
The following parts are carefully inspected and/or tested on every thermal printer and where we believe a part is defective or worn, we replace that part as needed: ribbon feed spindle, ribbon take up spindle, platen, rollers, bearings, drive motor, belts, logic board, ribbon sensor, media sensor, control panel, display panel, power supplies, housing components are cleaned/or painted & replaced as necessary, and brand new print head added. Each unit undergoes stringent testing and quality control procedures before being shipped. Our printers ship with a 90 day limited return to MIDCOM service center warranty.
Product Information
STANDARD FEATURES
Print methods: Thermal transfer or direct
thermal
Construction: Die-cast aluminum base, frame
and printhead mechanism
Metal media cover with large clear window
Element Energy Equalizer™ (E3®) for superior print
quality
Auto-calibration
Real-time clock
Auto-ranging (90–265 VAC) power supply
Color-coded operator cues
Multi-language control panel with back-lit
240 x 128 pixel display
PRINTER SPECIFICATIONS
Resolution
203 dpi/8 dots per mm; 300 dpi/12 dots
per mm; 600 dpi/24 dots per mm (ZM400 only)
Memory
Standard: 8 MB Flash, 16 MB DRAM
Optional: Factory Installed 64 MB Flash
Print Width
ZM600: 6.6"/168 mm
Print Length
ZM600: with 203 dpi: 102"/2,590 mm; with
300 dpi 45"/1,143 mm
Print Speed
203 dpi: 10"/254 mm per second;
300 dpi: 8"/203 mm per second;
600 dpi: 4"/102 mm per second
Media Sensors
Fixed reflective sensor
Adjustable transmissive sensor
MEDIA CHARACTERISTICS
Maximum label and liner length
Maximum non-continuous: 39"/991 mm
Maximum label and liner width
7.0"/178 mm—ZM600
Maximum roll diameter
8.0"/203 mm
Core diameter
3"/76 mm
Media thickness
0.0023"/0.058 mm to 0.010"/.25 mm
Media types
Continuous, die-cut, tags, black-mark
For optimum print quality and performance, use
genuine Zebra™ supplies.
RIBBON CHARACTERISTICS
Outside diameter
3.2"/81.3 mm
Standard length
984'/300 m or 1476'/450 m
Ratio
3:1 media roll to ribbon.
Ribbon must be at least as wide as media
Width
2.00"/51 mm to 4.33"/110 mm
Ribbon setup
Ribbon wound ink-side out (ribbon wound ink-side
in can be used with optional ribbon spindle)
Core I.D.
1.0"/25.4 mm
OPERATING CHARACTERISTICS
Environmental
Operating temperature:
32º F/0º C to to 104º F/40º C (Direct Thermal)
40º F/5º C to 104º F/40º C (Thermal Transfer)
Storage temperature: -40º F/-40º C to
140º F/60º C
Operating humidity: 20-85% non-condensing
Storage humidity: 5-85% non-condensing
Electrical
Universal auto-ranging (PFC-compliant) power
supply 90-265 VAC; 48-62Hz
Agency Approvals
IEC60950-1, EN55024, EN61000-3-2,
EN61000-3-3, EN 55022 Class B
Markings: cTUVus, CE, FCC-B, ICES-003, VCCI,
C-Tick, NOM, CCC, GOST-R, BSMI, S-Mark
(Arg), SABS, MIC, ZIK
PHYSICAL CHARACTERISTICS
Width: 10.9"/278 mm
Height: 13.3"/338 mm
Depth: 18.7"/475 mm
Weight: 32.4 lbs/15 kg
Shipping weight: 49 lbs/22 kg
*Specifications are subject to change.
