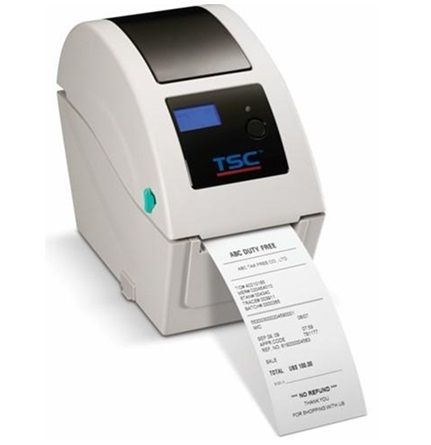

TSC TDP-324

TSC TDP-324

The TSC TDP-324 desktop printer features a compact design and high-performance engine and is ideal for healthcare, retail and asset tagging labeling applications.
Get a Quote >>
Availability: Call for availability
manufacturer warranty
Product Information

Overview

The TDP-324 prints at 4 ips and is the first low-cost affordable compact 2-inch desktop printers to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in stand-alone or down-time situations.

Printer Specifications

Resolution
300 dpi (12 dots/mm)

Print Method
Direct thermal only

Display
LCD with buttons
LED with buttons

Hardwire Connectivity
Ethernet
Serial RS-232
USB
USB Host

Wireless Connectivity
Bluetooth

Enterprise Printer Management
TSC Console

Type
Desktop

Max. Print Speed
Up to 4 ips (102 mm/s)

Max. Print Width
1.89" (48 mm)

Max. Print Length
40" (1,016 mm)

RAM
8 MB SDRAM

Flash
8 MB

Expanded Flash
4MB

Keyboard
Standalone keyboard

Optional Cutter
Guillotine cutter (full-cut or partial-cut)

Media Specifications

Internal Label Capacity
5" (127 mm) OD

Max. Media Width
0.59" - 2.36" (15 - 60 mm)

Media Type
Continuous; Die-Cut; Black Mark; Fan-Fold; Notched; Wristband (Outside Wound)

Media Core Diameter
1" - 1.5" (25.4 - 38 mm)

Construction
Clamshell with double-walled plastic

Programming Languages
TSPL-EZD



*Specifications are subject to change without notice
