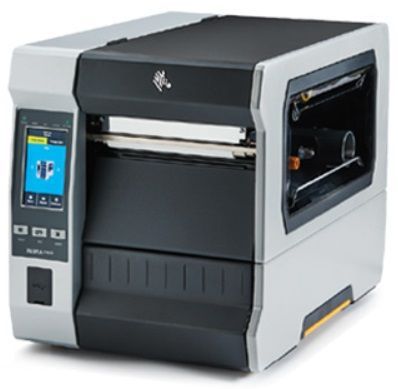

Zebra ZT620R RFID

The Zebra ZT620R RFID printer virtually eliminates operational downtime due to printer failure. The durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. Guided instructions and feedback eliminate common errors and reduce manual adjustments for highly consistent printing. And high-quality print mechanisms and internal components deliver superior printer.

Product Information

More Standard Features

Reduce RFID Media Costs

Tags are spaced incredibly close together, with a distance (pitch) of 0.6″/16 mm or narrower on most RFID inlays—smaller than what other printer/encoders can accommodate. By spacing inlays closer, label converters use less material, which reduces your cost per label, requires fewer media roll changes and gives you faster printer/encoder throughput.

Printer Specifications

RFID

Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols Integrated RFID system is user-upgradeable in the field and available on both 4″ and 6″ models Adaptive Encoding Technology automatically selects optimum encode settings Supports industrystandard, multi-vendor, chip-based serialization Supports block permalocking of user memory compatible with ATA Spec 2000 Allows users to track performance with RFID job-monitoring tools Standard Features

Print Methods: Thermal transfer and direct thermal printing Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window Side-loading supplies path for simplified media and ribbon loading Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0 Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance Simplified icon menu navigation system categorizes settings into logical groups of functions Printer Specifications

Resolution 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only)

Memory 1 GB RAM memory 2 GB on-board linear Flash memory

Maximum Print Width ZT610: 4.09″/104 mm ZT620: 6.6″/168 mm

Maximum Print Speed ZT610: 14 ips/356 mm per second ZT620: 12 ips/305 mm per second

Media Sensors Dual media sensors: transmissive and reflective

Maximum Continuous Print Length ZT610 • 203 dpi: 150″/3810 mm • 300 dpi: 130″/3302 mm • 600 dpi: 30″/762 mm ZT620 • 203 dpi: 150″/3810 mm • 300 dpi: 100″/2540 mm

Media Characteristics

Media Width ZT610 • 1.00″/25.4 mm to 4.5″/114 mm tear/cutter • 1.00″/25.4 mm to 4.25″/108 mm peel/rewind ZT620 • 2.00″/51 mm to 7.0″/178 mm tear/cutter • 2.00″/51 mm to 6.75″/171 mm peel/rewind

Maximum Media Roll Size 8.0″/203 mm O.D. on a 3″/76 mm I.D. core

Thickness 0.0023″/0.058 mm to 0.010″/0.25 mm Media Types Continuous, die-cut, notch, black-mark

Ribbon Characteristics (Thermal-transfer option only)

Standard Length 1476’/450 m

Width ZT610: 2.00″/51 mm to 4.33″/110 mm ZT620: 2.00″/51 mm to 6.85″/174 mm

Core 1.0″/25.4 mm I.D.

Operating Characteristics

Environmental Operating Temperature: • Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC • Direct thermal = 32ºF to 104ºF/0ºC to 40ºC Operating Humidity: 20% to 85% non-condensing Storage/Transportation Temperature: -22F to 140F/ -30C to 60C Storage Humidity: 20% to 85% non-condensing

Electrical Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts ENERGY STAR qualified

Agency Approvals IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Physical Characteristics

ZT610 closed

Length 19.88″/505 mm

Width 10.56″/268.2 mm

Height 15.58″/395.68 mm

Weight 50 lbs/22.7 kg

ZT620 closed

Length 19.88″/505 mm

Width 13.44″/341.45 mm

Height 15.58″/395.68 mm

Weight 57.4 lbs/26 kg

Software Tools

Link-OS Solutions

Document Design – Quickly design a customized print solution using your business data and Zebra’s intuitive plug-and-print design tools. Device Integration – Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems. Device Management – Manage your print operations locally and globally with Zebra’s suite of device management tools. Developer Tools – Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.

Web View

Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.

Firmware

ZBI 2.0™ – Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more. ZPL and ZPL II® – Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers. XML-enabled Printing – allows XML communications for barcode label printing.

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts Asian and other international scalable and smooth bitmapped fonts Unicode™: For multi-language printing Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0 32 MB user available DRAM 512 MB user available on-board Flash

Options and Accessories

Connectivity Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling • Rewind: Internally rewinds a full roll of printed labels on 3″ core, or peels and rewinds liner • Cutter: Front-mount guillotine cutter and catch tray • 1″ I.D. Core media supply hanger • Ink-side in ribbon supply spindle

Display • Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support

Keyboard Display Unit • ZKDU™ keyboard display units for stand-alone printing applications

*Specifications are subject to change without notice
