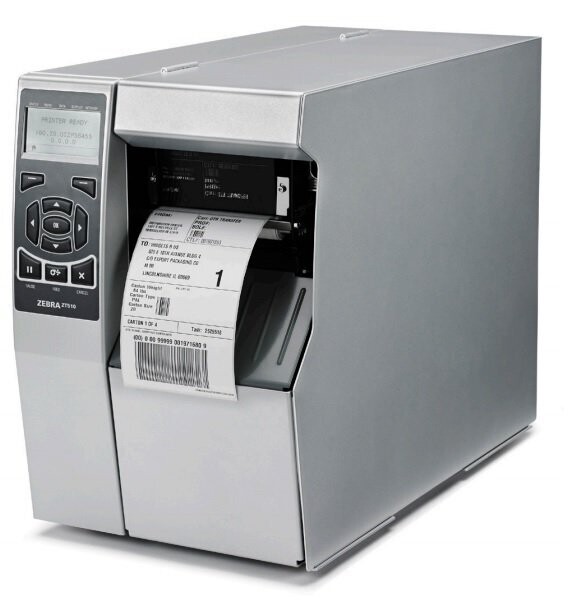

Zebra ZT510

Name: Zebra ZT510
SKU: 00003
Availability: InStock

Store / Printers

$0.00

In stock

Product Details

Designed to strike the ideal balance between performance and value, the Zebra ZT510 includes the core features you need in an industrial printer at a cos-effective price point. Replacement for Zebra's popular 105SL series.

Product Information

More Standard Features

Print Methods: Thermal transfer and direct thermal printing

Construction: Metal frame

Thin film printhead with E™ Element Energy™ for superior print quality

Communications: USB, Serial, Gigabit Ethernet, Bluetooth® LE

Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection

Printer Specifications

Resolution: 203 dpi(8 dots/mm)

300 dpi(12 dots/mm)

Memory: 512 MB RAM memory

2 GB on-board linear Flash memory

Maximum Print Width: 4.09″/104 mm

Maximum Print Speed: 12 ips/305 mm/sec

Media Sensors: Dual media sensors (transmissive and reflective)

Maximum Continuous Print Length:

203 dpi: 150″/3810 mm

300 dpi: 100″/2540 mm

Media Characteristics

Media Width: 0.79″/20 mm to 4.5″/114 mm

Maximum Media Roll Size: 8″/203 mm O.D. on a 3″/76mm I.D. core

Thickness: 0.003″/.076 mm to 0.012″/0.305 mm

Media Types: Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length: 1476’/450mm

Width: 2.00″/51 mm to 4.33″/110 mm

Core: 1.0″/25.4 mm I.D.

Operating Characteristics

Environmental:

Operating Temperature:

Thermal transfer= 40°F to 104°F/5°C to 40°C

Direct thermal= 32°F to 104°F/0°C to 40°C

Operating Humidity: 20% to 85% non-condensing

Storage/Transportation Temperature: -22°F to 140°F/-30°C to 60°C

Storage Humidity: 20% to 85% non-condensing

Electrical

Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 watts

ENERGY STAR qualified

Agency Approvals

IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

cTUVus CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC,CU,BSMI,KCC,SABS,IN-Metro

Physical Characteristics

Length: 20.17″/512.3 mm

Width: 10.56″/268.2 mm

Height: 15.58″/395.68 mm

Weight: 50 lbs/22.7 kg

Software Tools

Link-OS Solutions

Document Design- Quickly design a customized print solution using your business data and Zebra’s intuitive plug-and-print design tools.

Device Integration- Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.

Device Management- Manage your print operations locally and globally with Zebra’s suite of device management tools.

Developer Tools- Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.

Web View

Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

Alert

Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.

Firmware

ZBI 2.0™- Optional powerful programming language that lets printers rn stand-alone applications, connect to peripherals and much more.

ZPL and ZPL II®- Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all zebra printers.

XML-enabled Printing- allows XML communications for barcode label printing.

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsetsA/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

16 resident expendable ZPL II bitmap and two resident scalable ZPL fonts

Asian and other international scalable and smooth bitmapped fonts

Unicode™: For multi-language printing

Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats

IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control

Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0

32 MB user available DRAM

512 MB user available on-board Flash

Options and Accessories

Connectivity

Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

Media Handling

Rewind: Internally rewinds a full roll of printed labels on a 3″ core, or peels and rewinds liner

Cutter: Front-mount guillotine cutter and catch tray

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications

*Specifications are subject to change without notice
