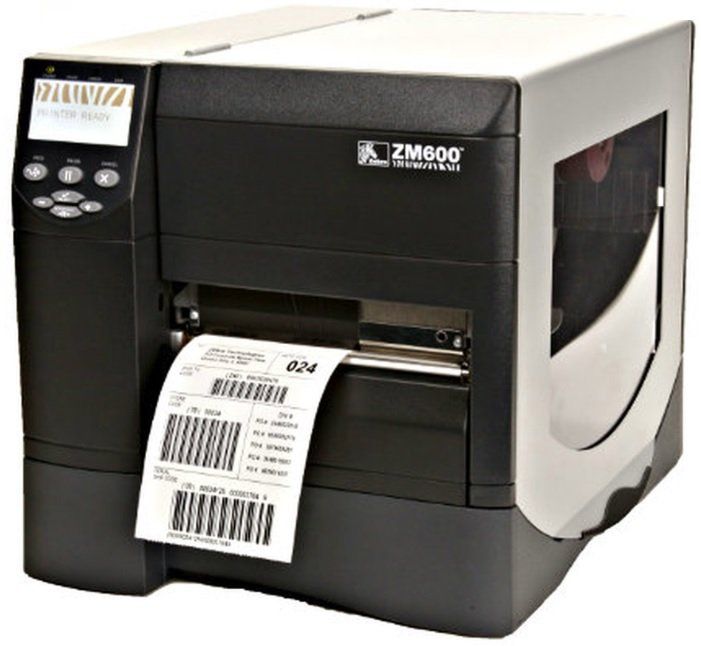

Zebra ZM600

The Zebra ZM600 printers bring added flexibility to the popular Z Series platform, which has always stood out from the competition in terms of both performance and price. With 10-inches-per-second print speed, industry leading throughput, rugged reliability, and a wide selection of options, these full-sized metal printers enhance productivity in tough environments and demanding applications.

All MIDCOM Certified refurbished equipment includes a 90 day warranty. Supplies are limited, but updated regularly.

**INCLUDES NEW PRINTHEAD & ETHERNET**

*Base model.

Product Information

STANDARD FEATURES

Print methods: Thermal transfer or direct thermal Construction: Die-cast aluminum base, frame and printhead mechanism Metal media cover with large clear window Element Energy Equalizer™ (E3®) for superior print quality Auto-calibration Real-time clock Auto-ranging (90–265 VAC) power supply Color-coded operator cues Multi-language control panel with back-lit 240 x 128 pixel display

PRINTER SPECIFICATIONS

Resolution 203 dpi/8 dots per mm; 300 dpi/12 dots per mm; 600 dpi/24 dots per mm (ZM400 only)

Memory Standard: 8 MB Flash, 16 MB DRAM Optional: Factory Installed 64 MB Flash

Print Width ZM600: 6.6″/168 mm

Print Length ZM600: with 203 dpi: 102″/2,590 mm; with 300 dpi 45″/1,143 mm

Print Speed 203 dpi: 10″/254 mm per second; 300 dpi: 8″/203 mm per second; 600 dpi: 4″/102 mm per second

Media Sensors Fixed reflective sensor Adjustable transmissive sensor

MEDIA CHARACTERISTICS

Maximum label and liner length Maximum non-continuous: 39″/991 mm

Maximum label and liner width 7.0″/178 mm—ZM600

Maximum roll diameter 8.0″/203 mm

Core diameter 3″/76 mm

Media thickness 0.0023″/0.058 mm to 0.010″/.25 mm

Media types Continuous, die-cut, tags, black-mark For optimum print quality and performance, use genuine Zebra™ supplies.

RIBBON CHARACTERISTICS

Outside diameter 3.2″/81.3 mm

Standard length 984’/300 m or 1476’/450 m

Ratio 3:1 media roll to ribbon. Ribbon must be at least as wide as media

Width 2.00″/51 mm to 4.33″/110 mm

Ribbon setup Ribbon wound ink-side out (ribbon wound ink-side in can be used with optional ribbon spindle)

Core I.D. 1.0″/25.4 mm

OPERATING CHARACTERISTICS

Environmental Operating temperature: 32º F/0º C to to 104º F/40º C (Direct Thermal) 40º F/5º C to 104º F/40º C (Thermal Transfer) Storage temperature: -40º F/-40º C to 140º F/60º C Operating humidity: 20-85% non-condensing Storage humidity: 5-85% non-condensing

Electrical Universal auto-ranging (PFC-compliant) power supply 90-265 VAC; 48-62Hz

Agency Approvals IEC60950-1, EN55024, EN61000-3-2, EN61000-3-3, EN 55022 Class B Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, CCC, GOST-R, BSMI, S-Mark (Arg), SABS, MIC, ZIK

PHYSICAL CHARACTERISTICS Width: 10.9″/278 mm Height: 13.3″/338 mm Depth: 18.7″/475 mm Weight: 32.4 lbs/15 kg Shipping weight: 49 lbs/22 kg

*Specifications are subject to change without notice
