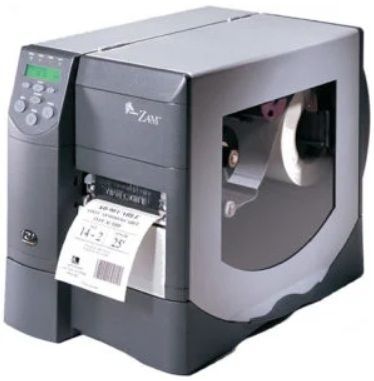

Zebra Z4M

The Zebra Z4M Plus printers have a personality all their own – along with a rugged look and feel characteristic of a Zebra workhorse. Charcoal gray accents enhance the Z4M s’ sleek, contoured design while providing improved dirt-and smudge-resistance in harsh work environments. Among the fastest Zebra printers these state-of-the-art metal printers offer more standard features per dollar- work hard, but are easy on the budget.

All MIDCOM Certified refurbished equipment includes a 90 day warranty. Supplies are limited, but updated regularly.

**INCLUDES NEW PRINTHEAD & ETHERNET**

*Base model.

Product Information

Overview

Among Zebra’s fastest printers at 10 inches per second, the Z4M comes equipped with more standard features per dollar than any other printers in their class. With backlit LCD control panel, full-size media window, and auto-calibration, plus a convenient printhead open-lock feature, operating and loading a Z4M printer is truly simple. Zebra Z4M – Exceptional performance, exceptional value!

Tech Specs

Resolution: 203 dpi (8 dots/mm) Serial/Parallel/USB New printhead 90 Day Warranty

More Standard Features:

Print methods: Thermal transfer or direct thermal Serial and Parallel Interfaces Construction: Die-cast aluminum base, frame and printhead mechanism Metal media cover with large clear window Zebra E3® Printhead Energy Control Auto-calibration Real-time clock Auto-ranging (110 V-220 V) power supply Color-coded operator cues Back-lit LCD control panel

Memory

Standard: 2 MB Flash, 8MB DRAM MAXIMUM PRINT AREA Width: 4.09″/104 mm Length with 203 dpi: 174”/4,420 mm PHYSICAL CHARACTERISTICS Width: 10.93″/278 mm Depth: 18.69″/475 mm Height: 13.32″/338 mm Weight: 32.4 lbs/15 kg

Maximum Print Speed

203 dpi/10 ips

Operating Characteristics

Environment Operating Temp. 32º F/0º C to 104º F/40º C (Direct Thermal) Operating Temp. 40º F/5º C to 104º F/40º C (Thermal Transfer) Storage Temp. -40º F/-40º C to 140º F/60º C Operating Humidity 20-85% non-condensing Storage Humidity 5-85% non-condensing Electrical Universal auto-ranging (PFC-compliant) power supply 90-265 VAC; 48-62 Hz; 5A fused Communication Interface Capabilities RS-232C serial port High-speed, IEEE1284, bi-directional parallel interface

Media Characteristics

Labels Max. Roll Size: 8″/203 mm O.D. on a 3″/76 mm I.D. core Thickness (label & liner): .0023″/.058 mm to .01″/.25 mm Maximum non-continuous label length 39″/991 mm Media Types: Continuous or fanfold, die-cut, notched, tag stock, black mark, perforated Ribbons Max. Roll Size: 3.2″/81.3 mm O.D. on a 1″/25.4 mm I.D. core Standard Lengths: 1476′/450 m; provides 3:1 media roll to ribbon ratios Ribbon Setup: Ribbon wound ink side out Ribbon is recommended to be at least as wide as media.

Fonts/Graphic/Symbologies

Fonts and Character Sets 7 bitmapped, 1 smooth scalable (CG Triumvirate™ Bold Condensed) Sets: International character sets supporting the following code pages: IBM® Code Page 850 International character set Optional European and Asian font sets Graphic Features Supports user-defined fonts and graphics—including custom logos ZPL II drawing commands—including boxes and lines Bar Code Symbologies Linear Bar Codes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case C Codes, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code, RSS 2-Dimensional: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, Micro PDF417, TLC 39, RSS

*Specifications are subject to change without notice
