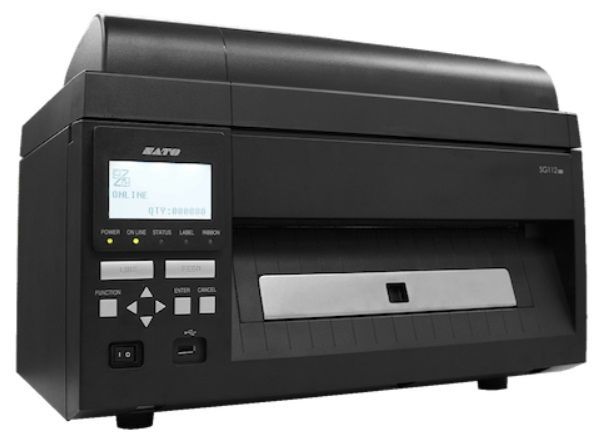

SATO SG112-ex

• Large Format Industrial Printer
• 10.5″ Print Width
• Automatic Label Loading
• RFID Option

Product Information

Overview

Demonstrating true SATO innovation, the SG112-ex is designed to save operator time and improve work efficiency in fast-paced production environments. The SG112-ex has a print width of up to 10.5 inches wide at a speed of up to six inches per second.

PRODUCT SPECIFICATIONS

Print Resolution 305 dpi (12 dots/mm)

Print Speed 3, 4, 5, 6 ips (75, 100, 125, 150 mm/sec)

Print Area Max Width 10.5″ (266.7 mm) Max Length 16.5″ (420 mm)

Media Size (with liner) Width Continuous / Tear Off / Tray / Cutter 5.15″ (131mm) – 11.8″ (300mm)

Length Continuous 1.29” (33mm) – 16.65” (423mm)

Tear Off 1.69” (43mm) – 16.65” (423mm)

Tray 1.69” (43mm) – 4.72” (120mm)

Cutter 1.69” (43mm) – 16.65” (423mm)

PRINTING SPECIFICATIONS

Method Thermal Transfer and Direct Thermal

Mode Continuous, Tear-off, Cut & Print (cutter model)

MEDIA SPECIFICATIONS

Sensor Type I-Mark Sensor (Reflective) / Label Gap Sensor (Transmissive)

Media Type Roll or fan-fold die cut labels

Media Thickness (Label & Liner) 0.0031″ – 0.0106″ (0.08 – 0.27 mm) *Use media 0.0047″ (0.12 mm) or greater in thickness for Auto Feed mode *Use media 0.0083″ (0.21 mm) or lesser in thickness for Cutter option

Roll Diameter Maximum 8” OD (200 mm) on 3” (76 mm) core

Wind Face-in / Face-out

Ribbon Length / Diameter Maximum 984.25 ft. (300 m) / Maximum 2.76″ OD (70.0 mm)

Width 5.7″ – 10.7″ (145 – 273 mm)

Core Diameter 1.01″ ID (25.6 mm)

Wind Direction Face-in

FONT SPECIFICATIONS

Internal Fonts 22 Bitmap Fonts, 8 Scalable Fonts, Multi-language display and printing of Asian fonts

CONNECTIVITY

USB 2.0 (Type A & B), LAN, RS-232C, IEEE1284, EXT, SD Card Slot, USB Type A

MEMORY & PROCESSING

CPU Type 32bit RISC-CPU 250MHz

On-Board Memory Flash ROM: Standard Memory Size 40MB User area 4.5 MB SDRAM: Standard Memory Size 64MB

User Downloadable Fonts, Graphics or Format Maximum 100 MB

USER FRIENDLY SUPPORT TOOLS

Large Status LED POWER (Green/Orange), ONLINE (Green), STATUS (Green/Red), LABEL (Red), RIBBON (Red).

Audible Alerts Adjustable volume setting

Self Diagnosis Head Open, Ribbon Open, Cutter-cover Open

Display Panel 3.3″ LCD display with three color LED (green, orange, red) and brightness adjustment

Operation Buttons LINE, FEED, FUNCTION, ENTER, CANCEL Arrow buttons

Print Setting Tool SATO-All-In-One-Tool

Multi-national Language Support English, Chinese, and Japanese display language options

OPTIONS

RTC (Calendar) Kit, Catch Tray, Unwind Unit.

BARCODE SYMBOLOGIES

Barcodes Linear UPC-A, UPC-E, JAN/EAN, CODE39CODE93, CODE128, GS1-128(UCC/EAN128), ISBT128, CODABAR(NW-7), ITF, Industrial 2of5, Matrix 2of5, MSI, POSTNET, BOOKLAND, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked , Intelligent Mail Barcode (IMb). *GS1 DataBar was formerly called RSS.E

2D Symbologies QR Code (including Micro QR) PDF417 (including MicroPDF) MAXICode (Ver.3.0) GS1 DataMatrix (ECC200 Ver.2.0)

OPERATING CHARACTERISTICS

Electrical Requirements AC100 V ~ 240 V ±10% (full range) / at 50/60 Hz.

Standards & Agency Approvals FCC Part 15 Subpart B Class A/ICES-003 Class A, CE(EN55032, EN55024), CCC(GB/T9254-2008, GB17625.1- 2012) BSMI(CNS13438), UL 60950-1/CSA C22.2 No.60950- 1, CE, Nemko-GS EN60950-1, CCC(GB4943.1-2011), BSMI(CNS14336-1), BIS(IS 13252).

Environment Operating 41 to 104°F (5 – 40°C), 30 – 80% RH (without condensation) Storage 23 to 140°F (-5 to 60°C), 30 – 90% RH (without condensation)

PHYSICAL CHARACTERISTICS

Dimensions 18.70″ W x 12.34″ L x 12.57″ H (475 mm x 313.4 mm x 319.2 mm) – 20.30″ H (515.5 mm) with cover open. 6.46″ (164 mm): Media exit area. 3.35″ (85.1 mm): Tray – Cutter Model Only.

Weight Standard Model (Media/Ribbon excluded): Approx. 44.1 lbs. (20.0 Kg) Cutter Model (Media/Ribbon excluded): Approx. 51 lbs. (23.1 Kg)

MISCELLANEOUS

SNMP enabled, SBPL Command Error Mode, Maintenance notifications, Error indicators, Data save mode

*Specifications are subject to change without notice
