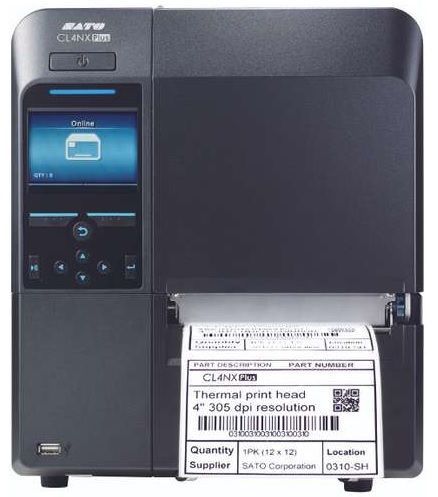

SATO CL4NX Plus

• Full color interactive LCD with Intuitive Menu Navigation
• 10-inch media supply (Face-in/Face-out wind) and 600m ribbon (CSI/CSO) supported
• Print speeds up to 14 ips in either 203 or 305 dpi
• HF or UHF RFID support

Built with integrity, designed with the operator and productivity in mind, the SATO CL4NX Plus is the next evolution in this product series and will surpass your expectations of today’s printing technology. With the support of up to 10-inch (254mm) OD of media and 1968-foot (600m) ribbon and incorporating Smart Print head technology to keep track of usage specific to the print head installed. The platen roller with the Pure Line indicator provides a visual wear indicator so users can be proactive when it is necessary to change this critical component. Speaking of those consumable components, the CL4NX Plus is still one of the easiest industrial tabletop printer models to replace the print head and platen roller with no tools required.

PRODUCT DESCRIPTION:

Full color interactive LCD with Intuitive Menu Navigation On-board Help Videos Tool-less Maintenance 10-inch media supply (Face-in/Face-out wind) and 600m ribbon (CSI/CSO) supported Multiple Interfaces – Auto Switching Competitive Emulations On-board – Auto Switching Micro Label Print Mode Print speeds up to 14 ips in either 203 or 305 dpi HF or UHF RFID support with SATO RF Analyze (SRA) **Coming Fall 2020 Smart Print Head and Pure Line Platen Roller Models Include:

203dpi

PRINT SPEED 14 ips (355 mm/sec)

PRINT METHOD Direct Thermal/Thermal Transfer

MAXIMUM PRINT AREA 4.09″ (104 mm) W x 98.43″ (2500mm) L

MEMORY CPU1: 2GB Flash, 256MB RAM CPU2: 4MB Flash, 64 MB RAM

PRINTER EMULATIONS SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP

INTERFACES STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, Bluetooth® Ver. 3.0, NFC OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)

REMOTE MANAGEMENT SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

305dpi

PRINT SPEED 14 ips (355 mm/sec)

PRINT METHOD Direct Thermal/Thermal Transfer

MAXIMUM PRINT AREA 4.09″ (104mm) W x 59.06″ (1500mm) L

MEMORY CPU1: 2GB Flash, 256MB RAM CPU2: 4MB Flash, 64 MB RAM

PRINTER EMULATIONS SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP

INTERFACES STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, Bluetooth® Ver. 3.0, NFC OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)

REMOTE MANAGEMENT SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

690dpi

PRINT SPEED 6 ips (152 mm/sec)

PRINT METHOD Direct Thermal/Thermal Transfer

MAXIMUM PRINT AREA 4.09″ (104mm) W X 15.74″ (400mm) L

MEMORY CPU1: 2GB Flash, 256MB RAM CPU2: 4MB Flash, 64 MB RAM

PRINTER EMULATIONS SBPL / SDPL / SEPL / SIPL / STCL / SZPL / XML, Direct PDF Printing, SATO AEP

INTERFACES STANDARD: USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, Bluetooth® Ver. 3.0, NFC OPTIONAL: Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11 a/b/g/n, Dual Band (2.4 GHz, 5 GHz)

REMOTE MANAGEMENT SNMP Ver. 3, Web Interface, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect

*Specifications are subject to change without notice
