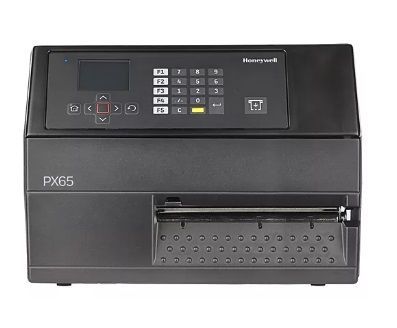

Honeywell PX65

The Honeywell PX65 industrial printer is flexible, compact, and programmable, enabling customers to optimize their printing operations, streamline deployment, and achieve quick return on investment.

Product Information

Overview

The rugged, all-metal Honeywell PX65 printer deliver outstanding performance – up to 12 inches per second from first label to last – and incorporate features that reduce downtime and minimize maintenance costs.

Specifications

FEATURES

Features Compact Size Seamless Connectivity

Compatible Software BarTender Nicelabel Operational Intelligence SOTI Connect Teklynx Labelview

Compatible Drivers CUPS Driver for Linux Certified Device Types for SAP InterDriver Windows

Application DC/Warehouse Healthcare Manufacturing

DIMENSIONS

Overall Dimensions L x H x W: 482 mm x 238 mm x 335mm (19.0 in x 9.4 in x 13.2 in)

Weight range 12.6 kg (31.12 lbs) kilogram

PRINTING SPECIFICATIONS

Resolutions 203 dpi 300 dpi

Print Speeds 100–225 mm/s (4–9 ips)

Print Method Direct Thermal Thermal Transfer

SOFTWARE & FIRMWARE

Downloadable Font Type Bitmap Font OpenType Font (TrueType based) TrueType Font

2D Barcodes All major 2D barcodes

Linear Barcodes All major 1D barcodes

Printer Command Language C# Smart Printing DPL Direct Protocol (DP) Fingerprint (FP) Intermec Printer Language (IPL) PDF XML-enabled for SAP AII and Oracle WMS ZSim2 (ZPL-II)

Image File Format BMP GIF PCX PNG

Font Engine Monotype Font Engine WTLE for global language support

MEDIA

Maximum Ribbon Length 1,476 foot

Printer Media Type Label Linered Linerless RFID Tag

Maximum Media Roll Diameter 8.38 inch

NETWORK

Wireless Communication IEEE 802.11 a/b/g/n/ac WEP, WPA, WPA2, 802.11x (EAPTTLS,LEAP, PEAP, FAST) Wi-Fi Certified

Network Specifications Ethernet 10/100 Mbps

RFID Specifications RFID

MEMORY & DATA

Memory External Multi-GB USB memory device (FAT16/FAT32)

RAM Memory 256 MB megabyte

Flash Memory 512 MB megabyte

HARDWARE

Printer Connection Interface Industrial Interface: 8 digital in/out Parallel: IEEE 1284 RS-232, up to 115.2 KB/s USB 2.0 Device High Speed USB 2.0 Host High Speed

ELECTRICAL

Operating Frequency 45 – 65 Hz

Operating voltage 100 – 240 V AC

ENVIRONMENTAL

Operating temperature +5°C to +40°C (+41°F to +104°F)

Operating Humidity 20 – 80 % non-condensing

Storage Humidity 20 – 80 % non-condensing

Storage Temperature -20°C to +70°C (-4°F to +152°F)

SERVICE TERMS

Warranty Duration One year factory warranty

OTHERS

Platform Honeywell Printer Edge

*Specifications are subject to change without notice
