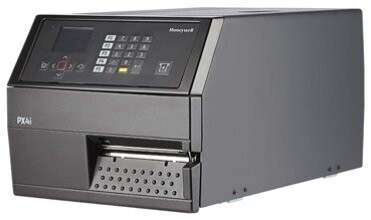

Honeywell PX4ie

Honeywell PX4ie

Store / Printers
$0.00
In stock
Product Details

The Honeywell PXie Series, including the PX4i and PX6i industrial printers are flexible, compact, and programmable, enabling customers to optimize their printing operations, streamline deployment, and achieve quick return on investment.

Product Information

Specifications
PHYSICAL DESCRIPTION
Direct thermal and thermal transfer label, ticket, and tag printer. Also available with RFID.
PHYSICAL CHARACTERISTICS
L x H x W
PX4ie: 482 mm x 238 mm x 275 mm (19.0 in x 9.4 in x 10.8 in)
PX6ie: 482 mm x 238 mm x 335 mm (19.0 in x 9.4 in x 13.2 in)

Weight
PX4ie: 12.61 kg (27.87 lbs)
PX6ie: 14.13 kg (31.12 lbs)

PRINT SPECIFICATIONS
Max. Print Width
PX4ie: 112 (DT)/110 (TT) mm (4.4/4.3 in)
PX6ie: 167.4 mm (6.59 in)

Max. Length
At 203 dpi: 4095 mm (161 in)
At 300 dpi: 2775 mm (109 in)
At 406 dpi: 1016 mm (40 in)

RFID STANDARDS & FREQUENCIES
Supports 18000-6C / EPC Generation 2
865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular region.
PRINT SPEED
PX4ie
For 203/300 dpi: 100–300 mm/s (4–12 ips)
For 406 dpi: 100–250 mm/s (4–10 ips)

PX6ie
For 203/300 dpi: 100–225 mm/s (4–9 ips)

Resolution
PX4ie: 8 dots/mm (203 dpi), 11.8 dots/mm (300 dpi), 16 dots/mm (406 dpi)
PX6ie: 8 dots/mm (203 dpi), 11.8 dots/mm (300 dpi)

REGULATORY APPROVALS
CE (EN55022 Class B), FCC Class B, UL/cUL, C-Tick
Energy Star 3.0 (excludes non Wi-Fi parallel port SKUs)
OPTIONS
RFID, integral self-strip unit with liner takeup, Label Taken Sensor (LTS), alphanumeric keyboard*, parallel interface board, additional serial interface board*, industrial interface board*, applicator interface board**, media supply hub, cutter, label low sensor

*Not applicable when using IPL firmware.
** Supported for Direct Protocol and Fingerprint printer languages.

MEDIA
Type: Labels and Tags
Max/Min Width
PX4ie: 120/25.4 mm (4.72/1 in)
PX6ie: 170/76 mm (6.70/3 in)
Thickness: 2.4 to 10.0 mil
Configuration: Roll-fed or fanfold
Sensing: Gap, notch, black mark, continuous
Label Roll Max Diameter: 213 mm (8.38 in)
Label Roll Core: 38–76 mm (1.5–3 in)

Type: Ribbons
Roll Max Diameter: 80 mm (3.15 in), approx. 450 m
Core ID: 25.4 mm (1 in)
Type: Wax, mid-range, resin

INTERFACES
Standard
Ethernet: 10/100 Mbps
RS-232: up to 115.2 KB/s

Supported Serial Protocols
Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
IPL: XON/XOFF, Honeywell Std. Protocol
USB: 2.0

Optional
Parallel: IEEE 1284 Industrial Interface: 8 digital in/out, 4 analog relays, 1 RS-232/422/485 port
Dual Serial Ports: RS-232, RS-422, RS-485, and 20 mA Current Loop
Applicator Interface

Wireless
IEEE 802.11 a/b/g/n/ac
Wi-Fi Certified
WEP, WPA, WPA2, 802.11x (EAPTTLS, LEAP, PEAP, FAST)
Multiple industrial antenna options for maximized coverage

Supported Protocols
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6, NTP

FONTS
Monotype font engine; non-Latin fonts available through WTLE
GRAPHICS
Supports PCX, PNG, GIF, and BMP file formats. Other formats supported with Label Generation Tools.
MEMORY
Standard
128 MB Flash memory, 256 MB DDR2 SDRAM

Available
Multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

Built-in RTC
KEYPAD CONTROL PANEL
Interactive numeric keypad control panel 2.3 in color LCD

SOFTWARE
Printer Command Languages
Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2 (ZPL-II), DPL; XML enabled for SAP® AII and Oracle® WMS

Applications/Drivers
InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package

Smart Printing Languages
Honeywell C# for Printers: Smart Printing Developer Resource Kit; write apps with .NET-compatible development environments

Configuration and Device Management Support
PrintSet for printer configuration; sophisticated web interface for configuration, upgrades, and 1:1 management

Device Management Support (to be included in future release)
AirWatch, SOTI, Operational Intelligence

BARCODE SYMBOLOGIES
All major 1D and 2D symbologies are supported.
STANDARDS SUPPORTED
UPC/EAN Shipping Container
UCC/EAN 128 Serial Shipping Container
MH10.8 Shipping Label
AIAG (shipping parts label)
OGMARS
POSTNET
HIBCC
ISBT 128
GM1724
UPS shipping label
Global Transport label
POWER SUPPLY
AC Voltage
90 to 265V AC, 45 to 65 Hz

PFC Regulation
IEC 61000-3-2

Power Consumption
Standby 5W
Continuous average 125W
Peak 400W

OPERATING ENVIRONMENT
Ambient Operating Temperature
+5°C to +40°C (+41°F to +104°F)

Storage Temperature
-20°C to +70°C (-4°F to +152°F)

Humidity
10% to 90% non-condensing


*Specifications are subject to change without notice
