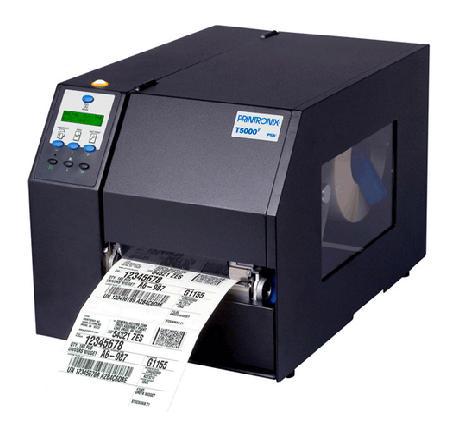

Printronix T5206r

Printronix T5206R

(End of Life)

Based on the 5r Multi-Technology Platform, the ThermaLine™ Printronix T5206r™ ENERGY STAR® family is an industrial thermal bar code printer designed to operate in challenging environments. Through leadership by design, the Printronix T5206r combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements.

Go To Replacement Product >>

Availability: End of Life Product

Product Information

Overview

Based on the 5r Multi-Technology Platform, the ThermaLine™ T5000r™ ENERGY STAR® family is an industrial thermal bar code printer designed to operate in challenging environments. Through leadership by design, the T5000r combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements. The T5000r supports the widest range of connectivity and control without sacrificing performance and provides the ability to meet new application and compliance requirements.

The T5000r integrates real world experience that readily adapts to emerging standards. The T5000r firmware can be upgraded to keep pace with new thermal bar code printing innovations and applications.

Specifications

6″ print width

203 dpi resolution

10 IPS print speed

Thermal transfer or direct thermal

64MB DRAM

16MB Flash

Roll or Fanfold

Ehternet RS232 Serial

Memory

DRAM 64MB standard Flash 16MB standard Printing Characteristics

Print Speed:

T5204r-4”: 10 IPS @ 203 dpi (254mm/sec)
T5304r-4”: 8 IPS @ 300 dpi (203mm/sec)
T5206r-6”: 10 IPS @ 203 dpi (254mm/sec)
T5306r-6”: 8 IPS @ 300 dpi (203mm/sec)
T5208r-8”: 8 IPS @ 203 dpi (203mm/sec)
T5308r-8”: 6 IPS @ 300 dpi (152mm/sec)

Printing Methods

Thermal transfer or direct thermal

Resolution

203/300 dpi (operator interchangeable)
Printable Width

4.1” max (104mm) (T5204r/T5304r)
6.6” max (168mm) (T5206r/T5306r)
8.5” max (216mm) (T5208r/T5308r)

Media Compatibility

Media Types

Roll or fanfold
Labels, tags and tickets
Paper, film or synthetic stock
Thermal Transfer or Direct Thermal

Media Width

1.0” to 4.5” (T5204r/T5304r)
2.0” to 6.8” (T5206r/T5306r)
3.0” to 8.75” (T5208r/T5308r)

Media Thickness

0.0025” to 0.010”

Roll Core Diameter

3.0” (7.6 cm)

Maximum Roll Diameter

8.0” (20.9 cm)

Thermal Transfer Ribbon Ribbon Width (min/max)

1.0” to 4.33” (T5204r/T5304r)
2.0” to 6.8” (T5206r/T5306r)
3.0” to 8.75” (T5208r/T5308r)

Maximum Ribbon Length

625m

Media Handling Characteristics

Tear-Off

Individual label tear-off

Tear-Off Strip

Label strips tear-off

Continuous

Labels print continuously

Cut

Label cut to length

Peel-Off

Label peel and present (peel-off mode requires rewind option)

Media Handling Characteristics

Rewinder

Required for peel and present. Not recommended for batch rewind of RFID labels

Cutter Kit

Cuts labels after printing specified number of labels. Not recommended for RFID labels

Operator Controls & Indicators

Operator Controls

Off Line-On Line, Test Print, Job Select, Form Feed Menu, Cancel, Enter

Message Display

32 character

Indicators

Off Line-On Line, Menu

Bar Code Validation

Optional

Online Data Validation (ODV) – verifies bar code quality, overstrikes failed bar codes, and reprints a label Compatible with RFID encoding

Programming Languages

Standard

Printronix Graphics Language (PGL)† Zebra Graphics Language (ZGL)† TEC Graphics Language (TGL) Intermec Graphics Language (IGL) Sato Graphics Language (STGL)† Datamax Graphics Language (DGL) IER Siège® Graphic Language (IEGL) Monarch Graphic Language (MGL) XML – Extensible Mark-up Language

Bar Code Validation

Optional

IPDS over Ethernet, Twinax or Coax

Protocols

Optional

Telnet TN5250/TN3270

Bar Code Symbologies Available

AUSTPORT, Aztec, BC35, BC412, CODABAR, Code 11, Code 35, Code 39, Code 93, Code 128 (A,B,C), EAN8, EAN13, FIM, I-2/5, German I-2/5, GS1-128, GS1-Databar, GS1-DATAMATRIX, IMB, Interleaved 2/5, ITF14, Matrix, MAXICODE, MSI, PDF417, PLANET, PLESSEY, POSTNET, POSTBAR, ROYALBAR, TELEPEN, UPC-A, UPC-E, UPC-E0, UPCSHIP, UPS11

Sensing Methods

Transmissive, Reflective (Gap, Mark, Notch, Continuous Sensing Form)

Interfaces

Standard

Ethernet (supports PrintNet Enterprise and PXML) RS232 Serial IEEE 1284 (Centronics) USB 2.0

Optional

Wireless (802.11b/g, 54mbps)†† 128bit WEP WPA-PSK / TKIP (Personal) WPA2-PSK / AES CCMP (Personal/Enterprise) PEAPv0 MSCHAPv2, LEAP, TTLS (supports PrintNet Enterprise and PXML) Coax/Twinax GPIO (General Purpose Input/Output)

Fonts, Graphics Support, Windows Drivers

Fonts
